Name: APN | Push-In Male Straight Connector - Metal
Availability: InStock

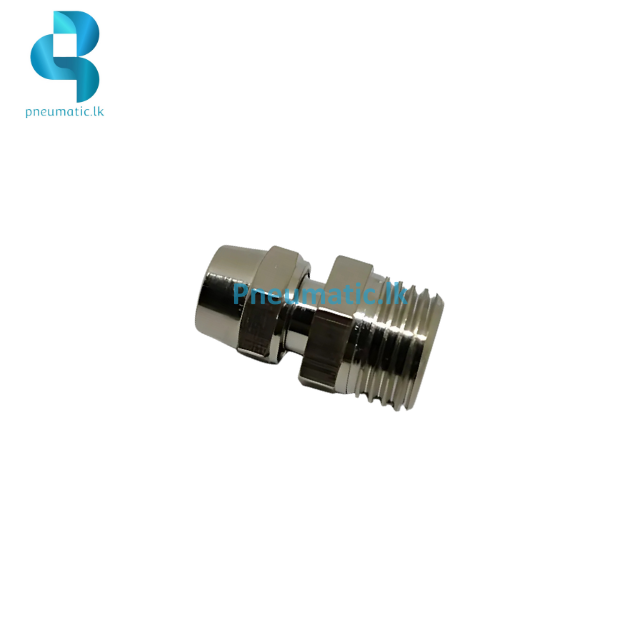

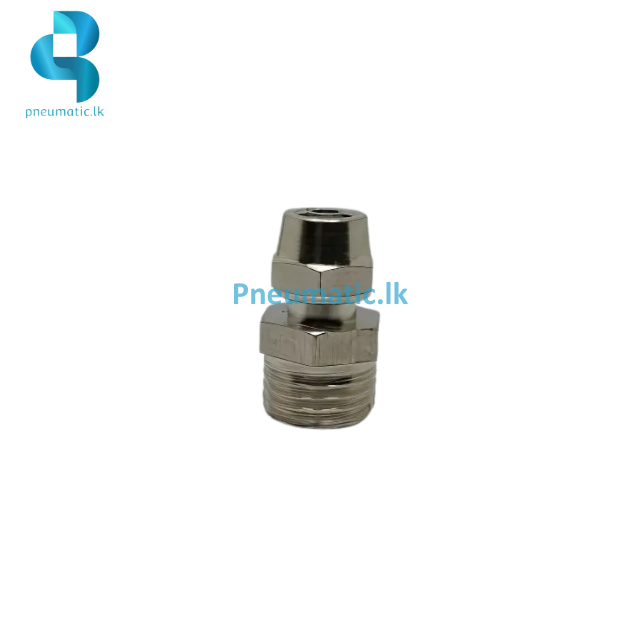

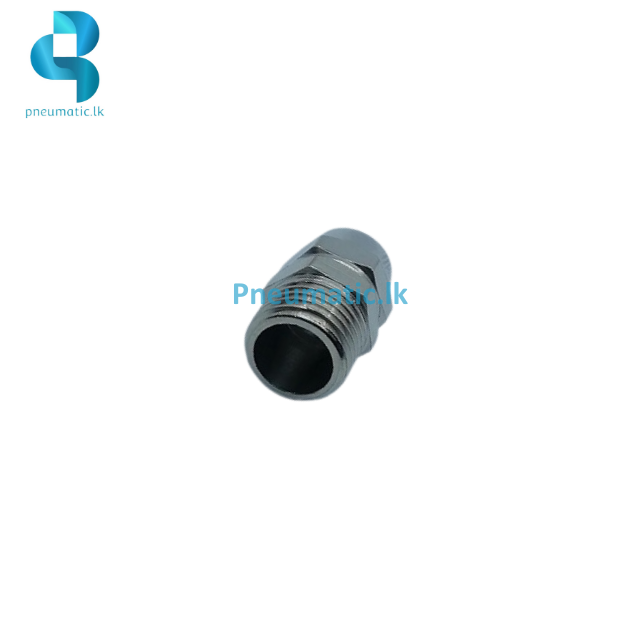

APN | Push-In Male Straight Connector – Metal

Type: Push-in male straight connector
Material: Nickel-plated brass (metallic body), PBT (resin body)
Tube Diameter: Available in multiple sizes (varies by model)
Thread Size: M5, M6, 1/8″, 1/4″, 3/8″, 1/2″ (varies by model)
Fluid Admitted: Air, vacuum, water (no freezing)
Maximum Pressure Range: 150 psi (1 MPa)
Negative Pressure Range: -29.5 inHg (-100 kPa)
Service Temperature Range: 32~140°F (0~60°C)
Features: Quick push-to-connect mechanism, corrosion-resistant, reusable, and secure tube retention.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Weight

N/A

Model

APN4-M5, APN4-M6, APN4-M6, APN4-01 (1/8), APN4-02 (1/4), APN4-03 (3/8), APN4-04 (1/2), APN6-M5, APN6-M6, APN4-M6, APN6-01 (1/8), APN6-02 (1/4), APN6-03 (3/8), APN6-04 (1/2), APN8-01 (1/8), APN8-02 (1/4), APN8-03 (3/8), APN8-04 (1/2), APN10-01 (1/8), APN10-02 (1/4), APN10-03 (3/8), APN10-04 (1/2), APN12-01 (1/8), APN12-02 (1/4), APN12-03 (3/8), APN12-04 (1/2), APN14-03 (3/8), APN14-04 (1/2), APN16-03 (3/8), APN16-04 (1/2), APN16-06
