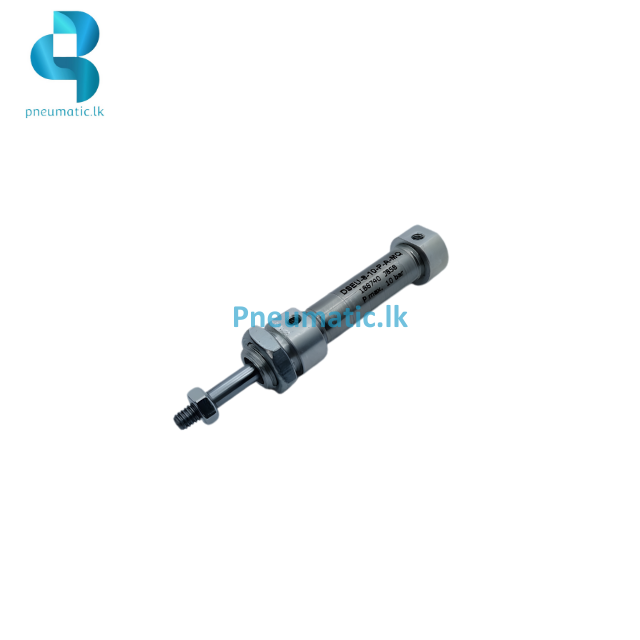

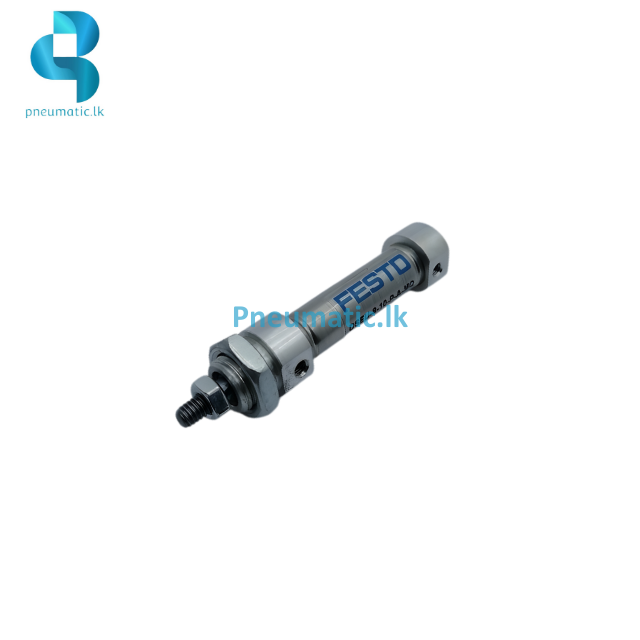

FESTO Model | DSEU-8-10 P-A-MQ | Vacuum Cylinder
- Type: Double-acting round pneumatic cylinder
- Bore (Piston Diameter): 8 mm
- Stroke Length: 10 mm
- Cushioning: Flexible cushioning rings/plates at both ends
- Air Connection: Lateral air port (MQ style)
- Operating Pressure Range: 0.06 – 1.0 MPa (0.6 – 10 bar)
- Medium: Compressed air
- Position Detection: Possible via proximity switches (magnetic piston)
- Ambient Temp. Range: -20 °C to +80 °C
- Cylinder Body: Round aluminum barrel with anodized finish
- Piston Rod: High-alloy stainless steel
- Compliance: RoHS, ISO cleanroom class & mechanical standards
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.04 kg |
|---|
FESTO Model | DSEU-8-10 P-A-MQ | Round Cylinder
25,985.00 LKR
