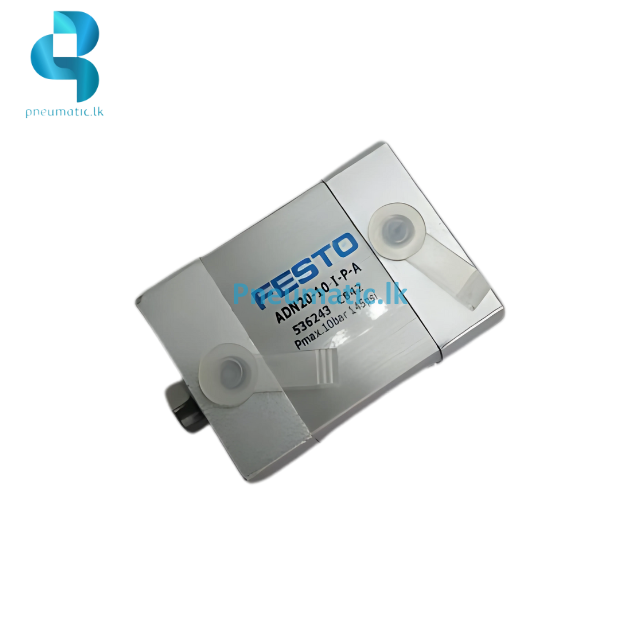

FESTO Model ADN20 Series | Air Cylinder
- Stroke: 1 mm to 300 mm
- Piston Diameter: 20 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating Pressure: 0.06 MPa to 1 MPa (0.6 bar to 10 bar)
- Temperature Range: -40°C to 80°C
- Material: High-alloy steel piston rod, anodized aluminum cylinder barrel
- Mode of Operation: Double-acting
- Mounting Position: Optional
- Conforms to Standard: ISO 21287
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | N/A |
|---|---|

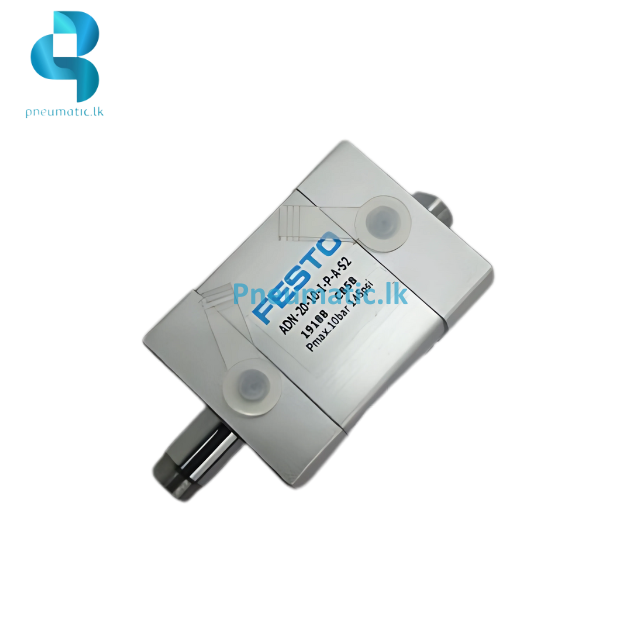

| Size | ADN20-10-I-P-A, ADN-20-10-I-P-A-S2 |
