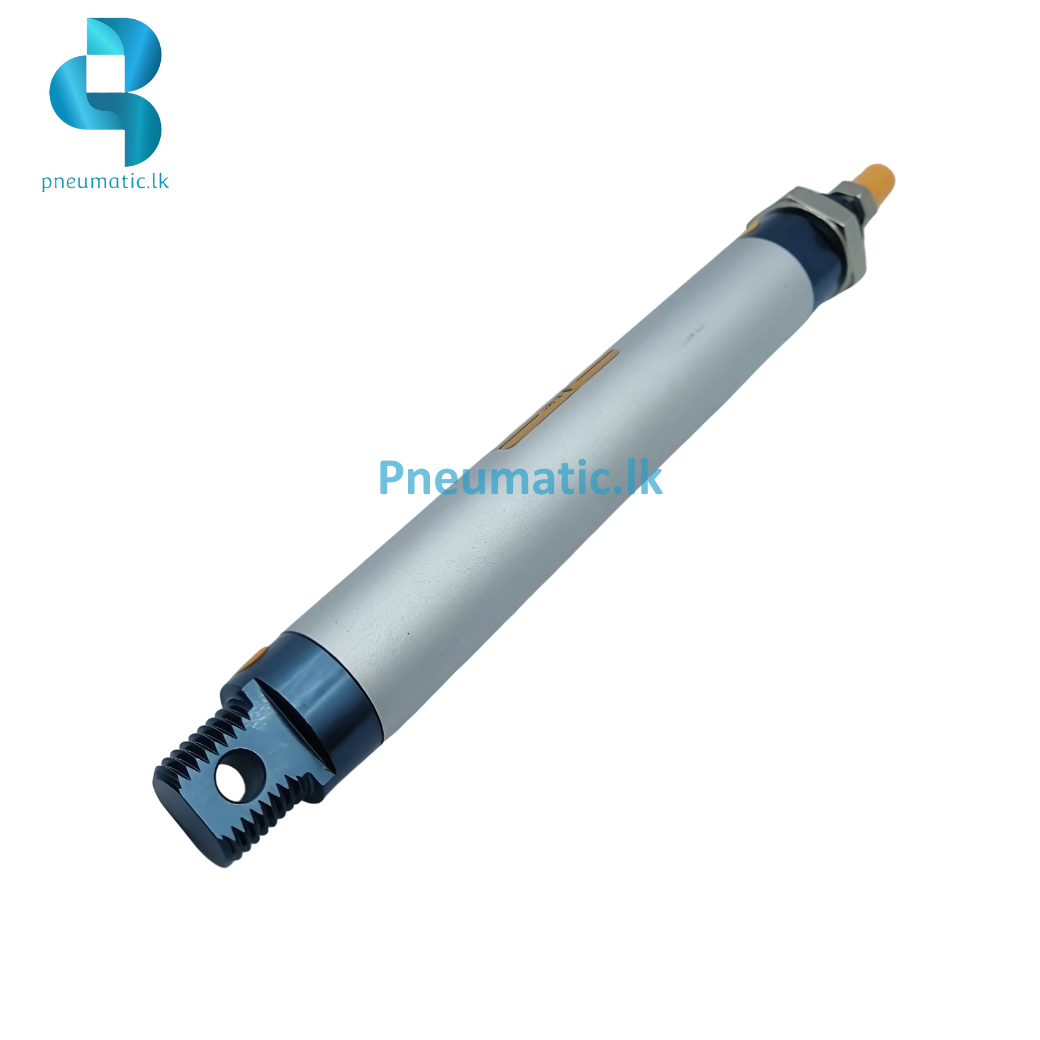

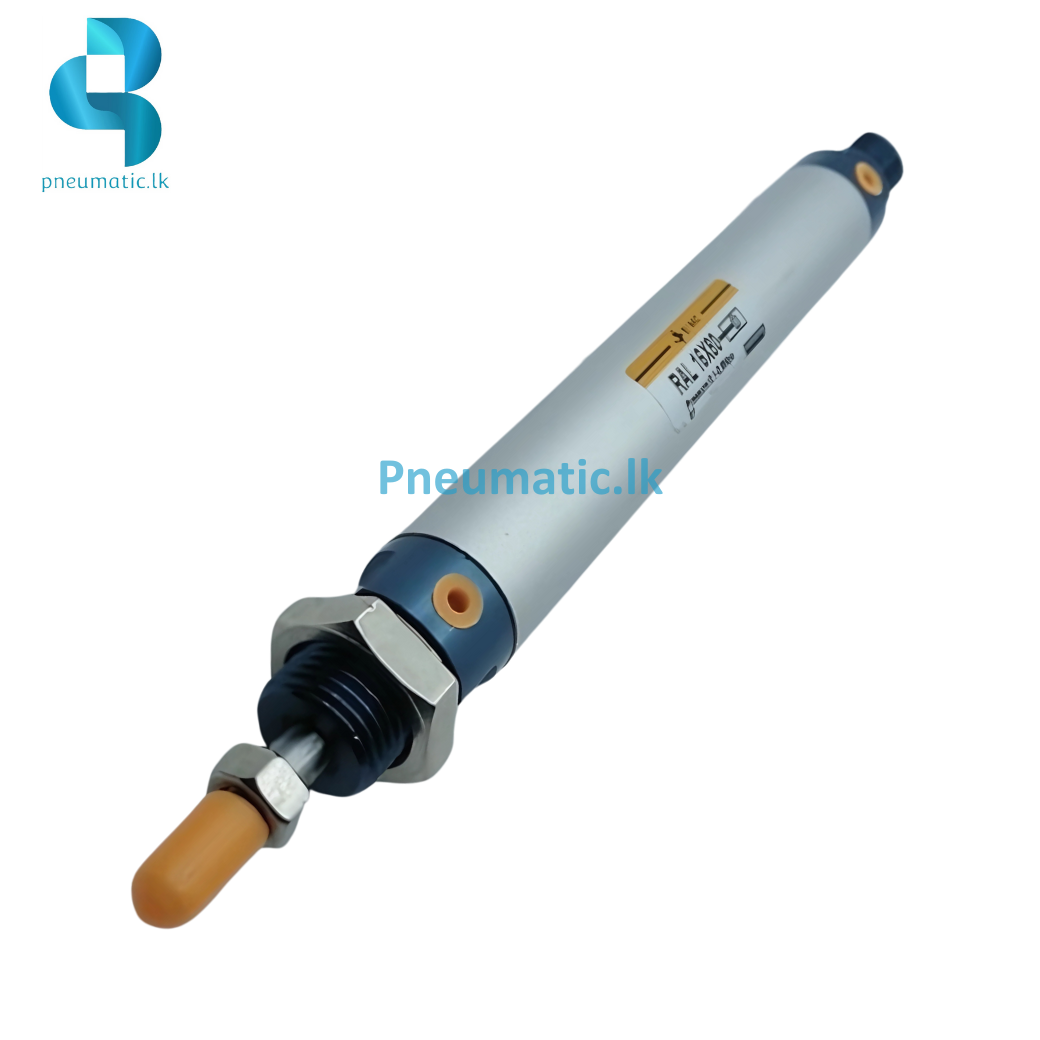

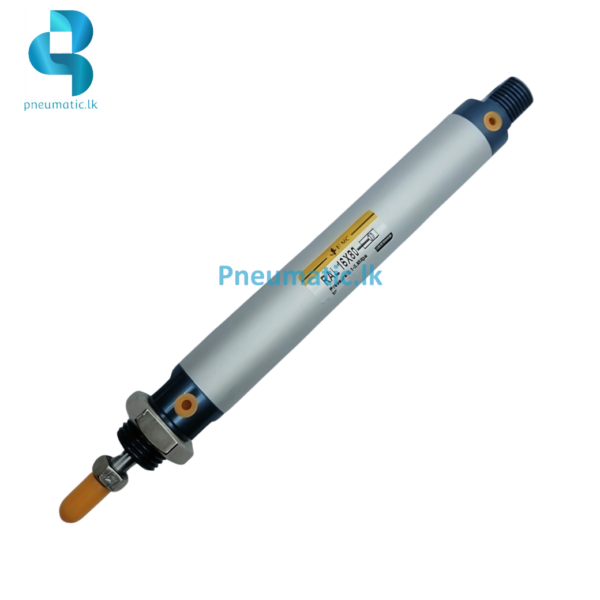

EMC Model | RAL16-80 | Mini Air Cylinder
- Type: Mini Air Cylinder (Round Type)
- Standard: ISO6432 / Compact Non-standard
- Action Type: Double Acting
- Bore Size: Ø16 mm
- Stroke Length: 80 mm
- Port Size: M5 (threaded air ports)
- Piston Type: Single Rod
- Operating Pressure: 0.1 – 0.7 MPa (1 – 7 bar)
- Max Pressure: 1.0 MPa (10 bar)
- Operating Temperature: -5°C to +70°C (No freezing)
- Material: Alluminium Alloy
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.137 kg |
|---|
Only logged in customers who have purchased this product may leave a review.
EMC Model | RAL16-80 | Mini Air Cylinder
9,000.00 LKR
