Name: SBR20-UU | Linear Bearing Block
SKU: 38570
Availability: InStock

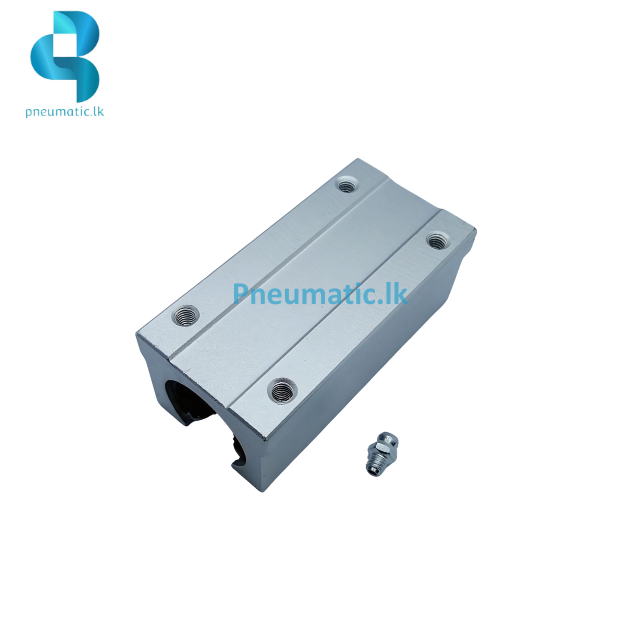

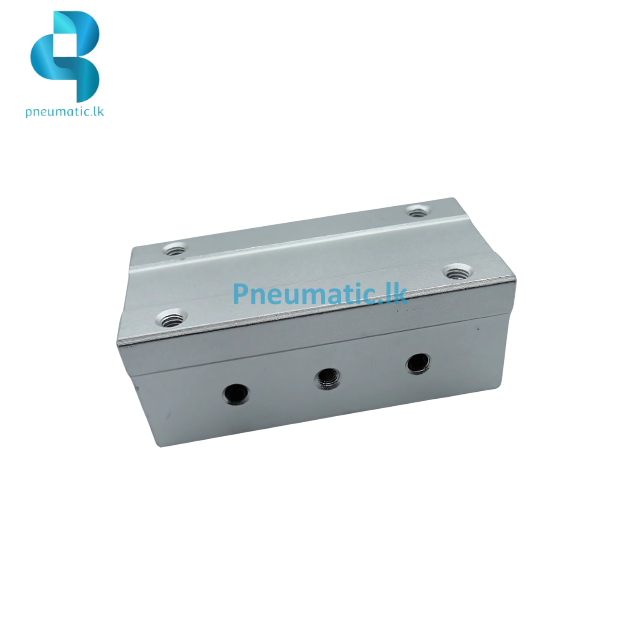

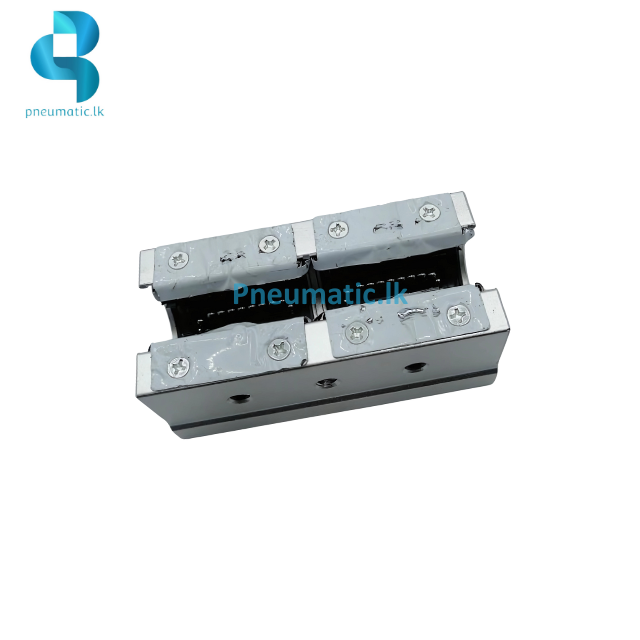

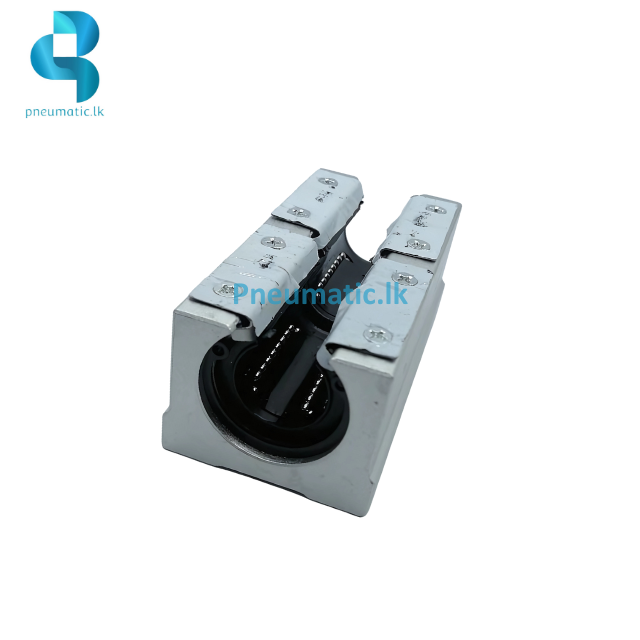

SBR20-UU | Linear Bearing Block

Shaft Diameter Compatibility: 20 mm
Block Dimensions:
- Length (L): 50 mm
- Width (W): 48 mm
- Height (H): 39 mm
Mounting Hole Dimensions:
- Hole Diameter: M6
- Hole Spacing: 35 mm (center-to-center)
Dynamic Load Capacity: 0.86 kN
Static Load Capacity: 1.37 kN
Material: Aluminum housing with steel bearing elements
Seal Type: Double-lip rubber seals (UU type)

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
