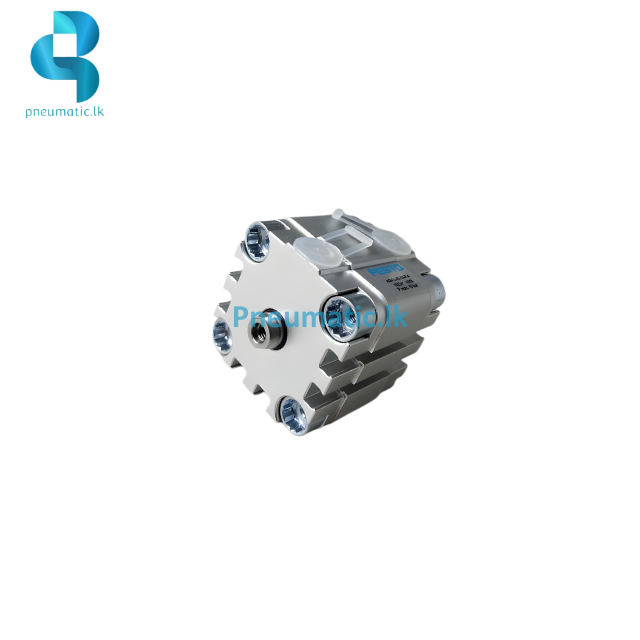

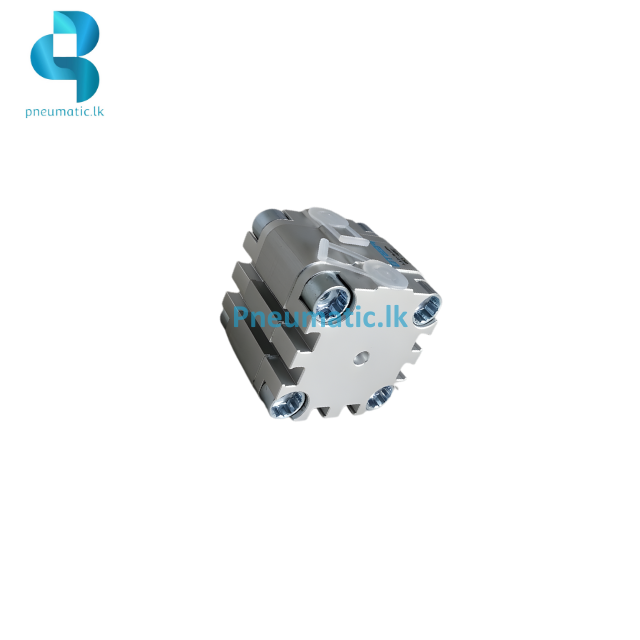

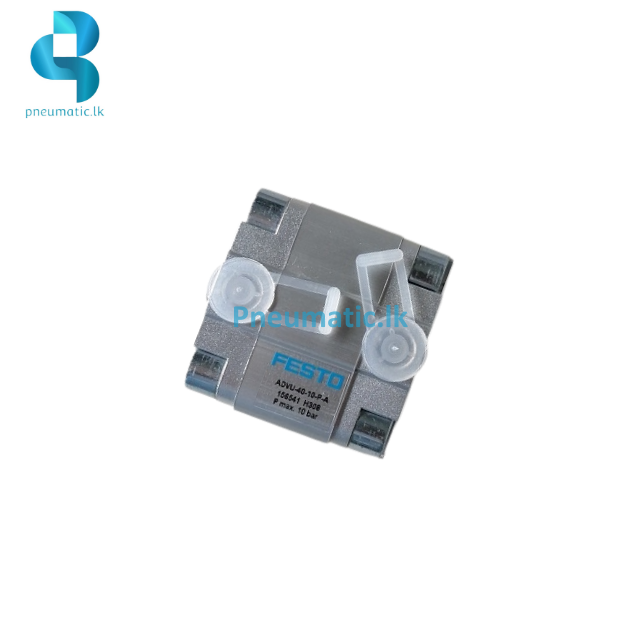

FESTO Model | ADVU-40-10-A-P-A | Compact Air Cylinder
- Series: ADVU series
- Action: Double-acting
- Bore Size: 40 mm
- Stroke: 10 mm
- Action: Double acting
- Cushion: Elastic cushioning rings & plates at both ends
- Piston-Rod End: Male threaded
- Mounting: Any
- Port Size: G1/8
- Operating Pressure: 0.08 MPa to 1 MPa
- Temperature Range: -20 °C to 80 °C
- Rod Thread: M10 x 1.25
- Medium: Compressed air
- Material: Aluminum alloy
- Application: Precise short‑stroke clamping in compact automation systems
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.375 kg |
|---|
FESTO Model | ADVU-40-10-A-P-A | Compact Air Cylinder
Price not available
