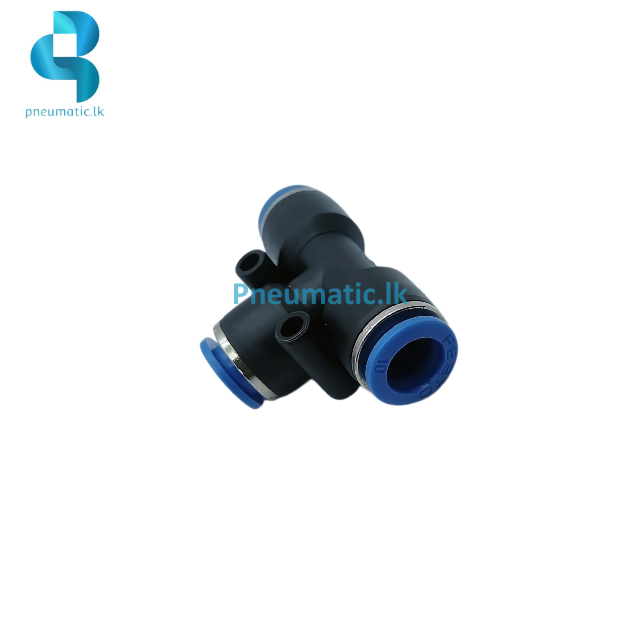

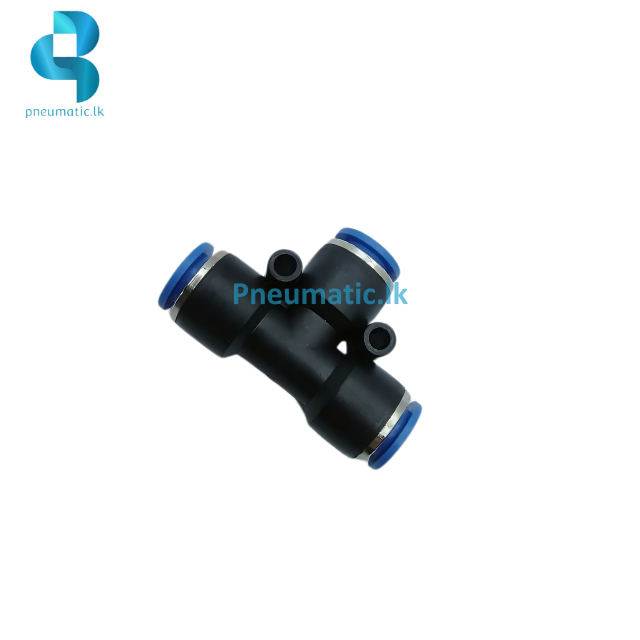

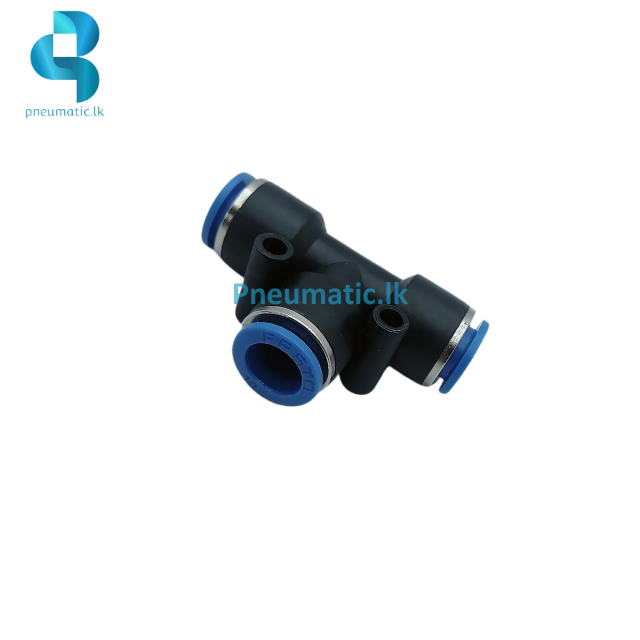

QST-10 | Push-In T-Connector

Name: QST-10 | Push-In T-Connector
SKU: 20080
Availability: InStock

LKR

USD

795.00 LKR

QST Series

10 mm port 1

10 mm port 2

In Stock: 76
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 20080 Category: Pneumatic Fittings, Push-in T Fitting, QST Series

QST-10 | Push-In T-Connector

Type: Push-in T-connector
Size: Standard
Nominal size: 8.1 mm
Mounting position: optional
Operating pressure complete temperature range: -0.095 MPa … 0.6 MPa / -0.95 bar … 6 bar / -13.775 psi … 87 psi
Temperature-dependent operating pressure: -0.095 MPa … 1.4 MPa / -0.95 bar … 14 bar / -13.775 psi … 203 psi
Note on operating and pilot medium: Lubricated operation possible
Ambient temperature: -10 °C … 80 °C
Number of outputs: 2
Pneumatic connection, port 1: For tubing outer diameter of 10 mm
Pneumatic connection, port 2: For tubing outside diameter of 10 mm
Colour of release ring: Blue
Note on materials: RoHS-compliant

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
