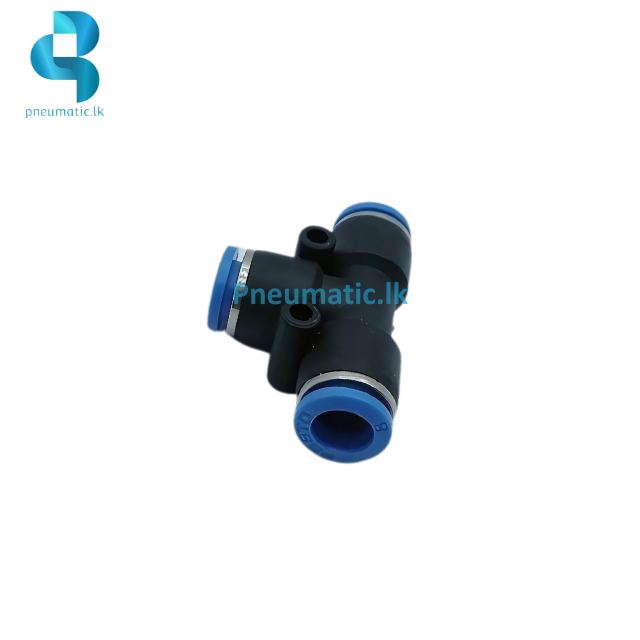

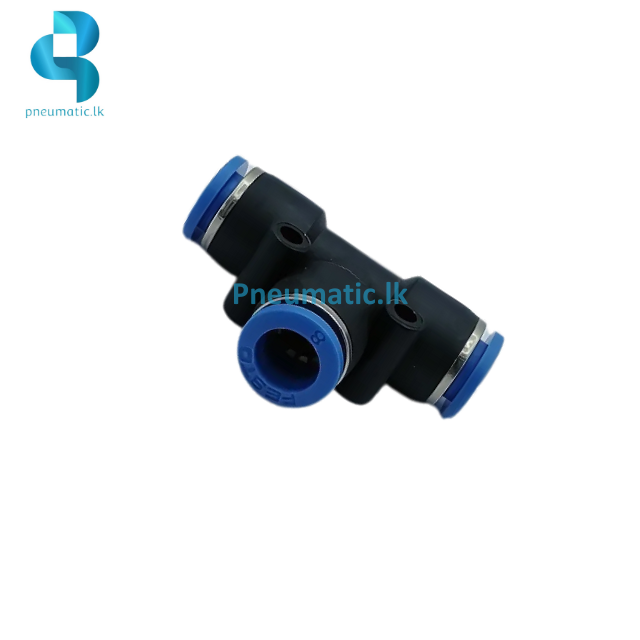

QST-8 | Push-In T-Connector

Name: QST-8 | Push-In T-Connector
SKU: 22287
Availability: InStock

LKR

USD

585.00 LKR

QST Series

08 mm port 1

08 mm port 2

In Stock: 127
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 22287 Categories: Pneumatic Fittings, Push-in T Fitting, QST Series

QST-8 | Push-In T-Connector

Size: Standard
Nominal size: 6.2 mm
Mounting position: optional
Design: T-shape Push-pull principle
Operating pressure complete temperature range: -0.095 MPa … 0.6 MPa / -0.95 bar … 6 bar / -13.775 psi … 87 psi
Temperature-dependent operating pressure: -0.095 MPa … 1.4 MPa / -0.95 bar … 14 bar / -13.775 psi … 203 psi
Ambient temperature: -10 °C … 80 °C
Number of outputs: 2
Number of supply lines: 1
Pneumatic connection, port 1: For tubing outer diameter of 8 mm
Pneumatic connection, port 2: For tubing outside diameter of 8 mm
Colour of release ring: Blue
Material tubing seal: NBR
Material tubing clamp component: High-alloy stainless steel

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
