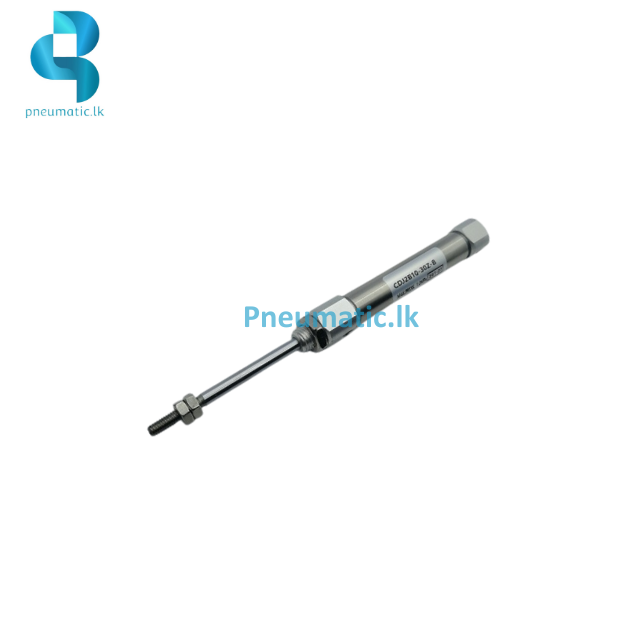

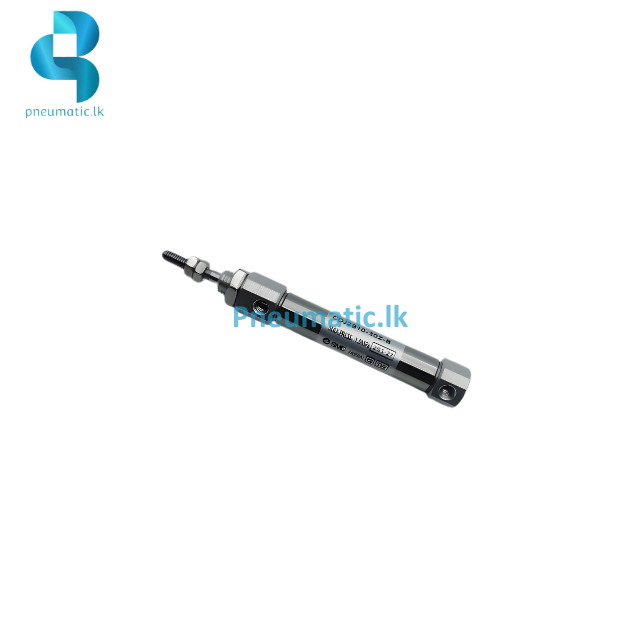

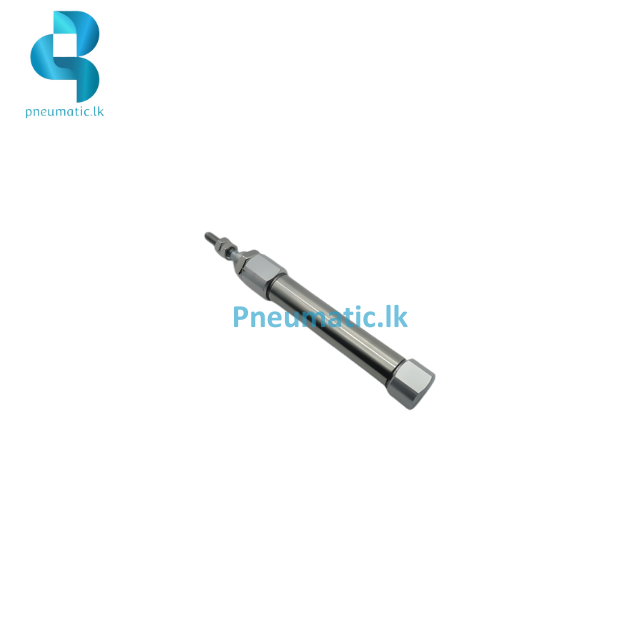

SMC Model | CDJ2B10-30-ZB | Double Acting Air Cylinder

Name: SMC Model | CDJ2B10-30-ZB | Double Acting Air Cylinder
SKU: 66021
Availability: InStock

LKR

USD

9,785.00 LKR

CDJ2B Series

10mm bore

30mm stroke

In Stock: 10
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 66021 Categories: Air Cylinder, CDJ2 Series, SMC Cylinders

Description
Additional information

SMC Model | CDJ2B10-30-ZB | Double Acting Air Cylinder

Series: CJ2 series
Type: Compact, double acting, single rod
Bore Size: 10 mm
Stroke Length: 30 mm
Built-In Magnet: Yes
Cushion: Rubber bumper
Port Size: M5 x 0.8
Rod End Thread: Male threaded
Medium: Air
Mounting: Double clevis
Auto Switch: Yes
Body Material: Stainless steel
Operating Pressure: 0.06 MPa – 10.7 MPa
Temperature Range: –10°C to 60°C
Function: Provides precise linear motion using compressed air
Application: Ideal for automation equipment, assembly lines, pick-and-place units

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
