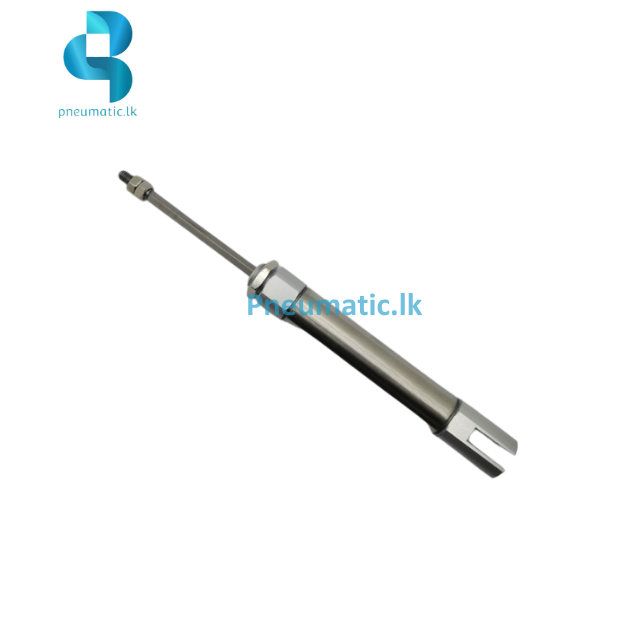

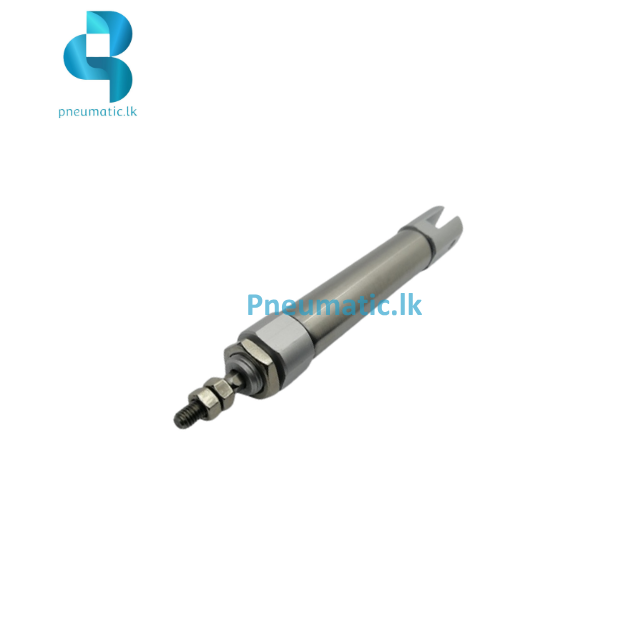

SMC Model | CDJ2KD16-50-Z-B | Double Acting Air Cylinder
- Series: CDJ2 series
- Bore Size: 16 mm
- Stroke Lengths: 50 mm
- Action: Double acting, single rod
- Port Size: M5 x 0.8
- Rod End Thread: Male threaded
- Built-In Magnet: Yes
- Medium: Air
- Mounting Style: Double clevis
- Body Material: Aluminum alloy
- Auto Switch: Yes
- Cushion Type: Air cushion
- Operating Pressure: 0.05 – 0.7 MPa
- Temperature Range: -10°C to +60°C
- Working Medium: Compressed air
- Application: Used in automation systems for precise linear motion in small spaces
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.098 kg |
|---|
SMC Model | CDJ2KD16-50-Z-B | Double Acting Air Cylinder
11,985.00 LKR
