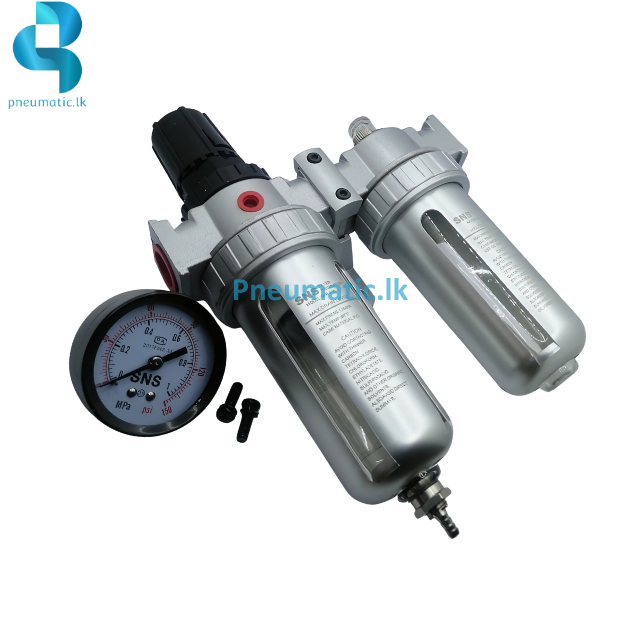

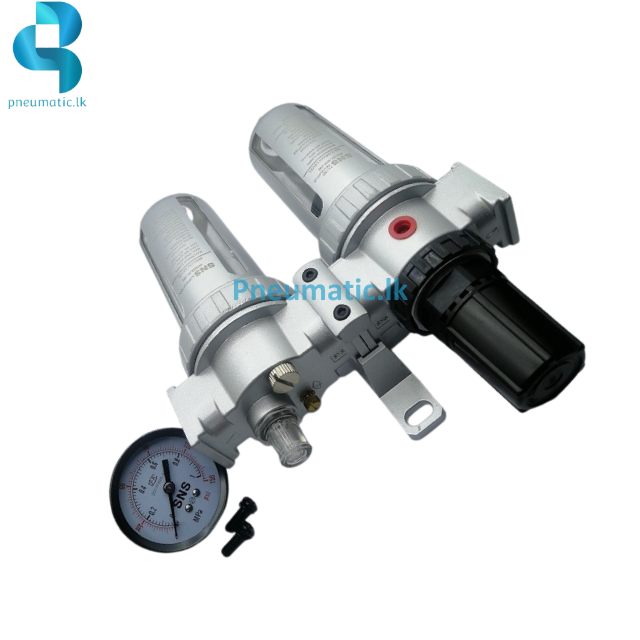

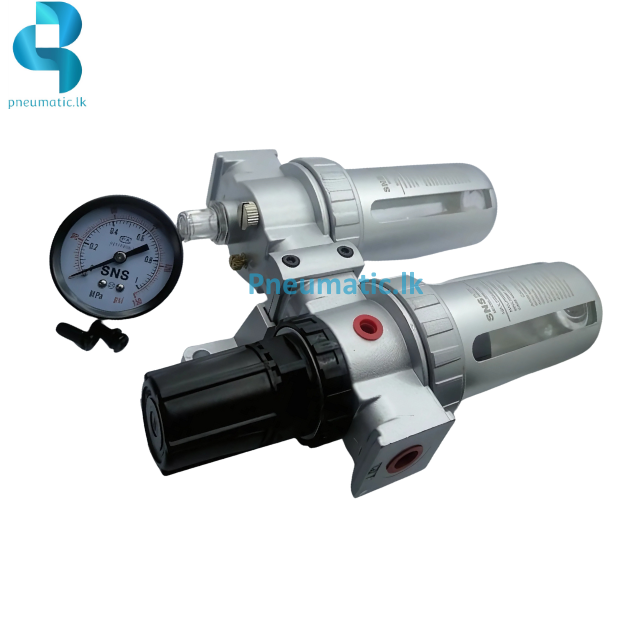

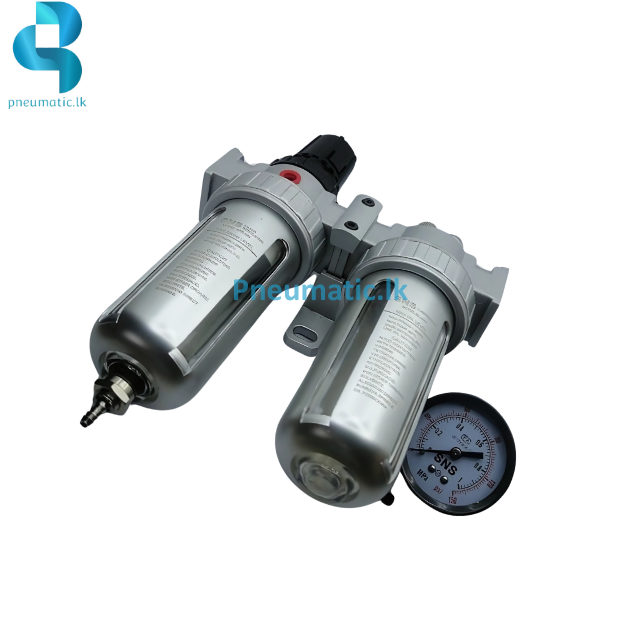

SNS Model | SFC Series | Air Control Unit | Air Filter Regulator
- Product Type: Air Control Unit (Air Filter + Regulator Combo)
- Series: SFC Series (Models: SFC-200 / SFC-300 / SFC-400)
- Port Sizes Available: 1/4″, 3/8″, 1/2″ (G Thread or NPT optional)
- Working Medium: Compressed Air
- Max Operating Pressure: 1.0 MPa (145 psi)
- Adjustable Pressure: 0.05 – 0.85 MPa
- Filtration Accuracy: 40 microns (Standard)
- Drain Type: Manual or Semi-automatic
- Temperature Range: 5°C to 60°C
- Body Material: Aluminum Alloy
- Bowl Material: Polycarbonate with Metal Protection Cover
- Mounting: Wall Mount (Bracket included)
- Pressure Gauge: Included (Analog Dial, 0–1.0 MPa)
- Installation: Vertical Position Recommended
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | N/A |
|---|---|
| Models | SFC-200, SFC-300, SFC-400 |
