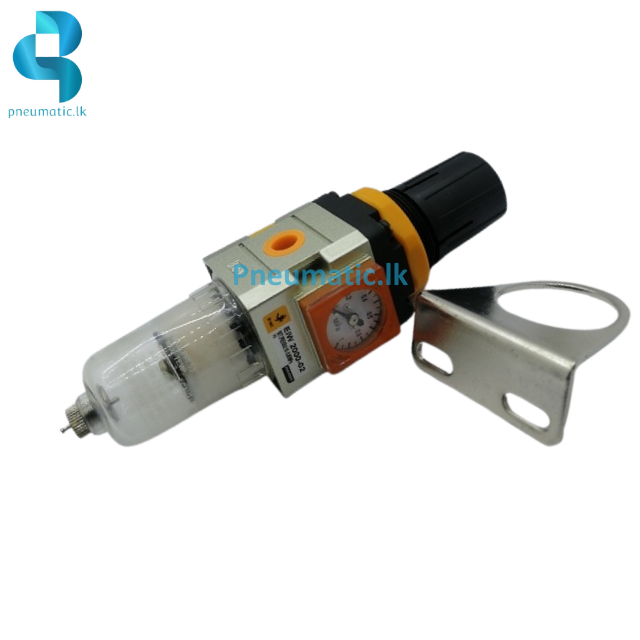

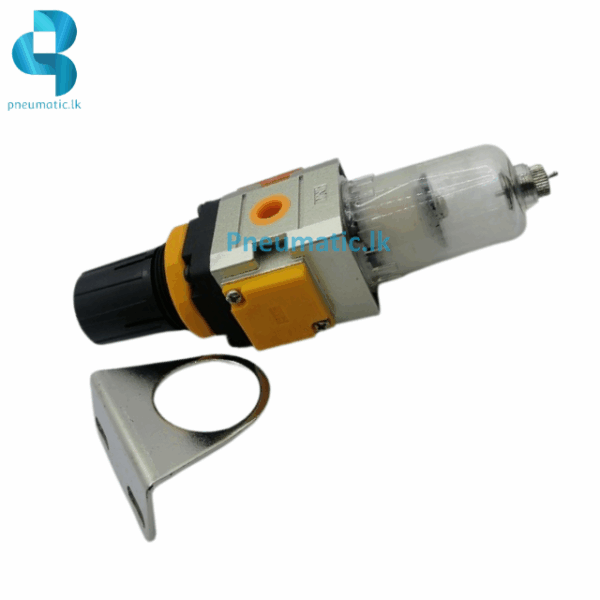

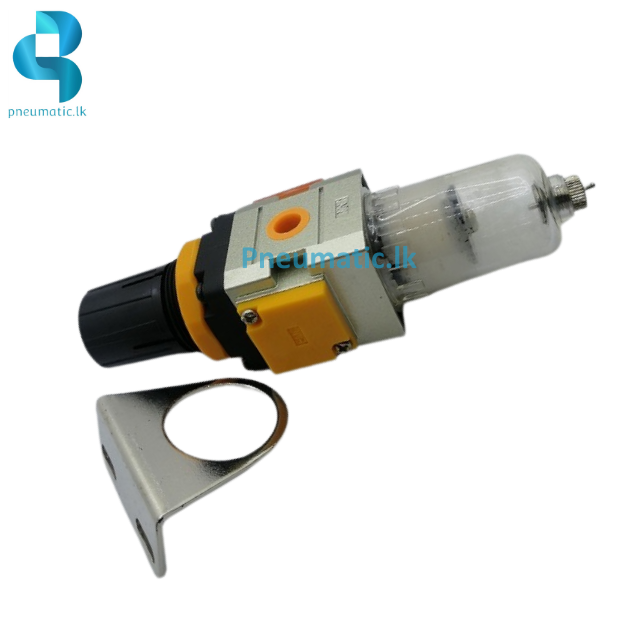

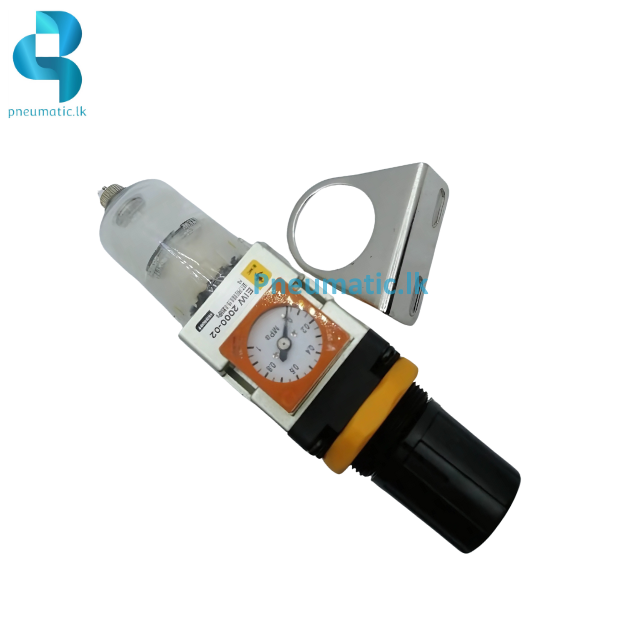

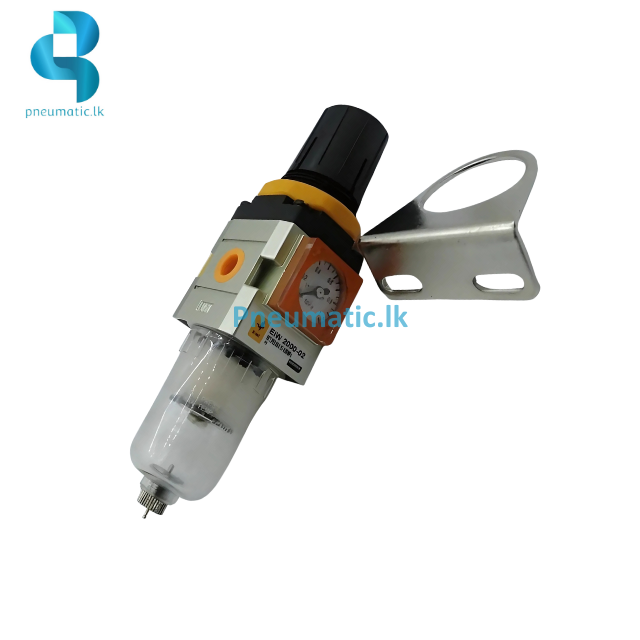

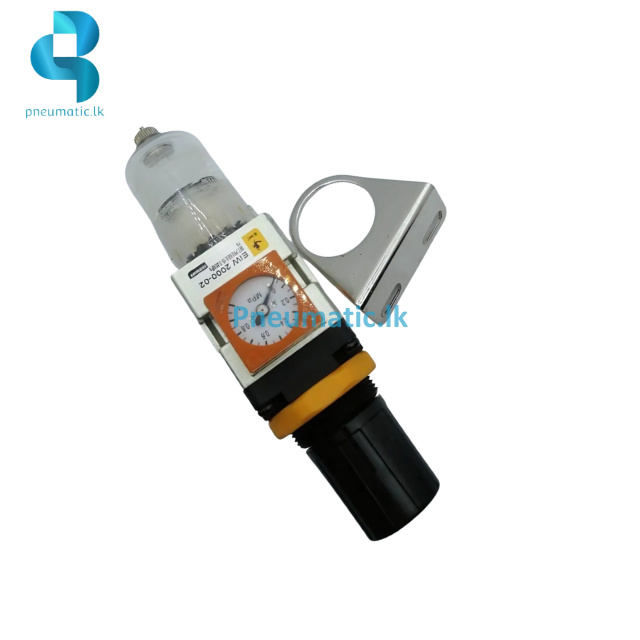

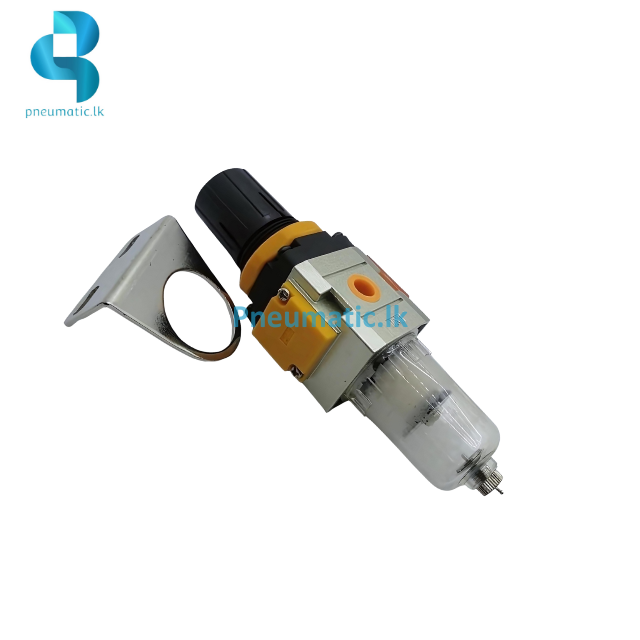

EMC Model | EIW-2000-02 | Air Regulator
- Model: EIW-2000-02
- Port Size: 1/4″ (G-thread standard; NPT and PT optional)
- Rated Flow: 1165 L/min (at 8.0 bar supply, 6.3 bar set pressure)
- Working Pressure Range: 0.15–1.0 MPa
- Adjustable Pressure Range: 0.05–0.9 MPa
- Proof Pressure: 1.5 MPa
- Operating Temperature: 5°C to 60°C
- Filter Precision: 25 μm standard (5 μm optional)
- Drain Type: Manual (auto-drain version available)
- Bowl Material: Polycarbonate (metal guard optional)
- Valve Type: With overflow (relieving type)
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
