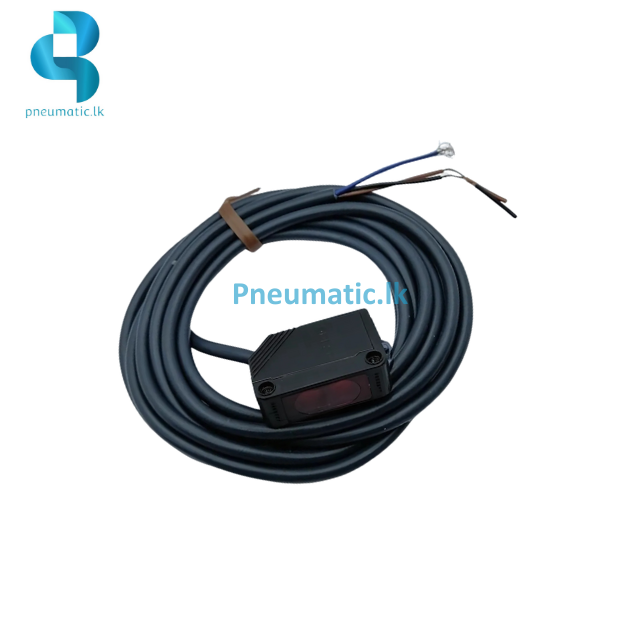

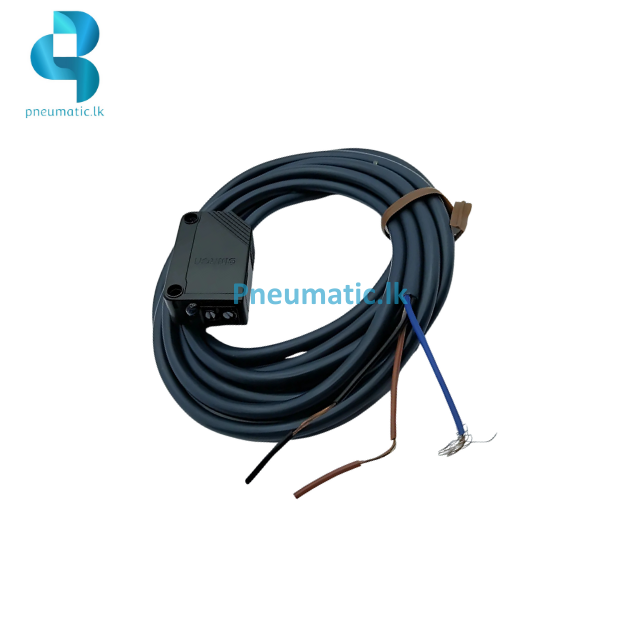

E3Z-D82 | Photoelectric Switch Sensor
- Sensing method: Diffuse-reflective
- Sensing distance: 1m (white paper 300 × 300 mm)
- Light source: Infrared LED (860nm)
- Power supply voltage: 12 to 24V DC ±10%
- Control output: PNP open collector (max 100mA)
- Operation mode: Light-ON/Dark-ON selectable
- Protection features: Output short-circuit protection, reverse polarity protection
- Response time: 1ms max
- Environmental resistance: IP67-rated for harsh conditions
- Operating temperature: -25°C to 55°C
- Housing material: Polybutylene terephthalate (PBT)
- Indicator: LED indicators for operation and stability
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.070 kg |
|---|
Only logged in customers who have purchased this product may leave a review.
E3Z-D82 | Photoelectric Switch Sensor
6,720.00 LKR
