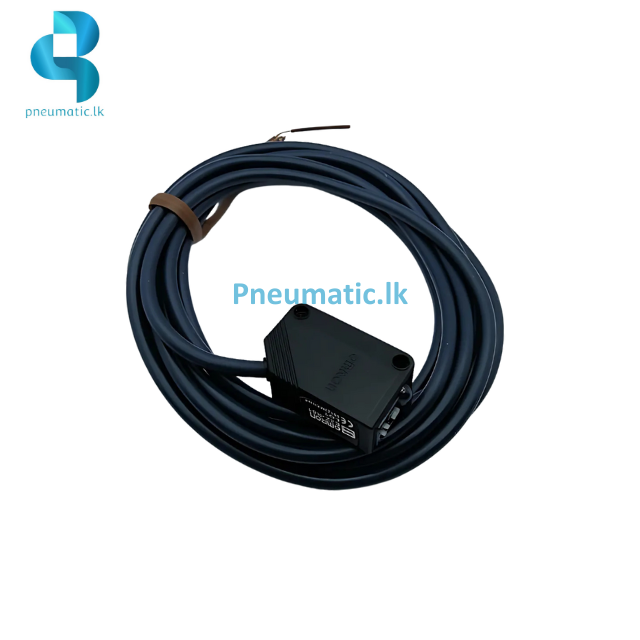

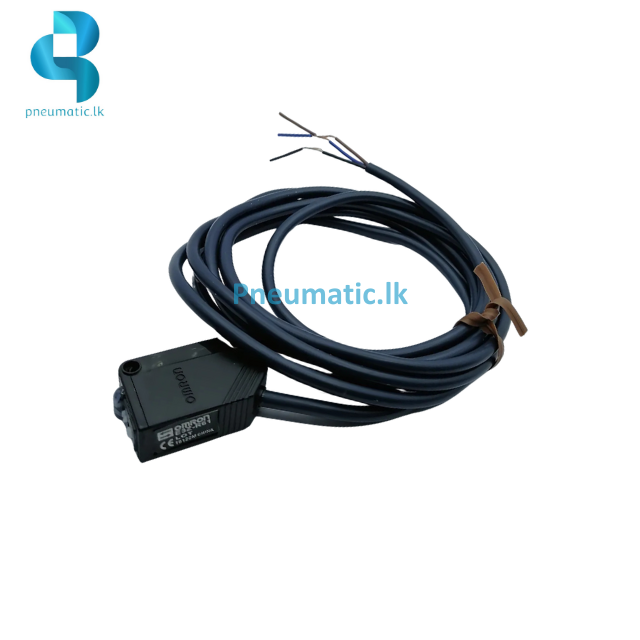

E3Z-R61 | Photoelectric Switch Sensor
- Sensing Method: Retro-reflective with MSR (Mirror Surface Rejection) function
- Sensing Distance: 100 mm to 4 m (with E39-R1S reflector)
- Light Source: Red LED (660 nm)
- Output Type: NPN open collector
- Response Time: 1 ms
- Power Supply Voltage: 12 to 24 VDC ±10%
- Current Consumption: 30 mA max.
- Load Current: Up to 100 mA at 26.4 VDC max.
- Residual Voltage: 1 V max. (load current less than 10 mA); 2 V max. (load current 10 to 100 mA)
- Ambient Operating Temperature: -25°C to +55°C
- Degree of Protection: IP67
- Cable Length: 2 meters (pre-wired)
- Housing Material: Polybutylene terephthalate (PBT)
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.071 kg |
|---|
