FESTO Model | ADVU-40 Series Compact Cylinder | Air Cylinder

Name: FESTO Model | ADVU-40 Series Compact Cylinder | Air Cylinder
Availability: InStock

LKR

USD

12,560.00 LKR – 13,985.00 LKR

Sizes

ADVU-40-5-P-A
ADVU-40-5-A-P-A

Clear

SKU: N/A Category: ADVU Series, Air Cylinder, FESTO

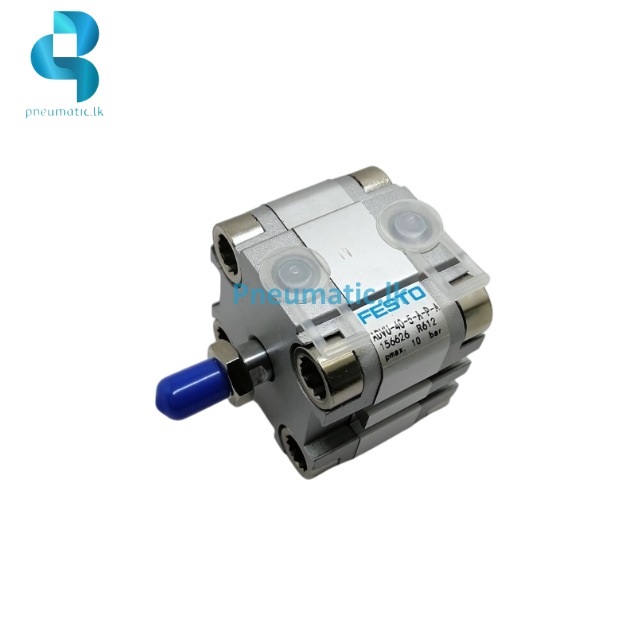

FESTO Model | ADVU-40 Series Compact Cylinder | Air Cylinder

Type: Compact, double-acting pneumatic cylinder.
Piston Diameter: 40 mm.
Stroke Range: 1 mm to 300 mm.
Cushioning: Elastic cushioning rings/pads at both ends for smooth operation.
Operating Pressure: 0.1 MPa to 1 MPa (1 bar to 10 bar or 14.5 psi to 145 psi).
Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4].
Ambient Temperature: -20°C to +80°C.
Position Sensing: Compatible with proximity sensors.
Mounting Options: Through-hole or with accessories.
Material:
- Cylinder Barrel: Wrought aluminum alloy.
- Piston Rod: High-alloy steel.
- Dynamic Seals: NBR and TPE-U(PU).

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
