FESTO Model | ADVU-50 Series Compact Cylinders | Air Cylinder

Name: FESTO Model | ADVU-50 Series Compact Cylinders | Air Cylinder
Availability: InStock

LKR

USD

Original price was: 130,080.00 LKR.Current price is: 65,040.00 LKR.

Sizes

ADVU-50-10-A-P-A
ADVU-50-20-A-P-A
ADVU-50-10-A-P

Clear

SKU: N/A Category: Air Cylinder, FESTO

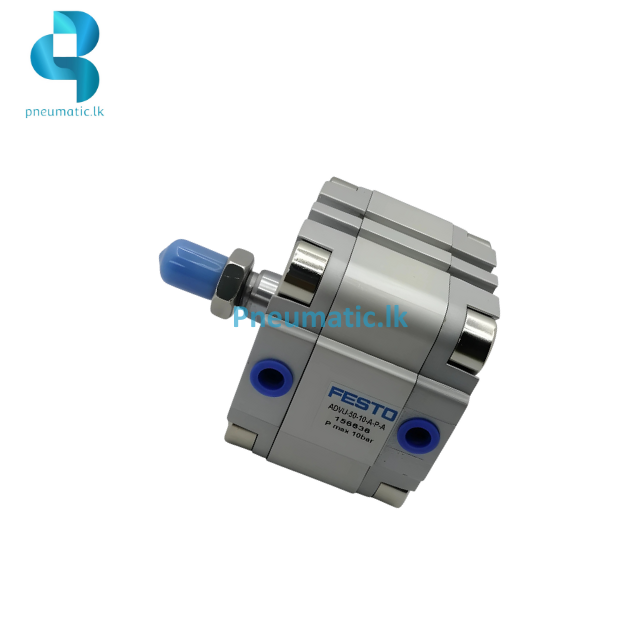

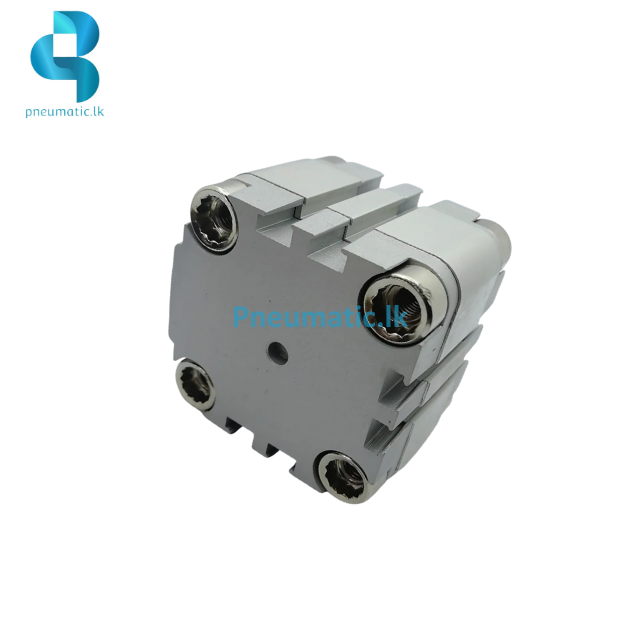

FESTO Model | ADVU-50 Series Compact Cylinders | Air Cylinder

Piston Diameter: 50 mm
Stroke Range: 1 mm to 300 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting Position: Any
Mode of Operation: Double-acting
Piston Rod End: External thread
Operating Pressure: 0.1 MPa to 1 MPa (1 bar to 10 bar or 14.5 psi to 145 psi)
Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient Temperature: -20 °C to 80 °C
Corrosion Resistance Class: CRC 2 (Moderate corrosion stress)
Position Sensing: Compatible with proximity sensors
Type of Mounting: Through-hole or with accessories
Pneumatic Connection: G1/8
Material:
- Cylinder Barrel: Wrought aluminum alloy
- Piston Rod: High-alloy steel
- Dynamic Seals: NBR, TPE-U(PU)

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
