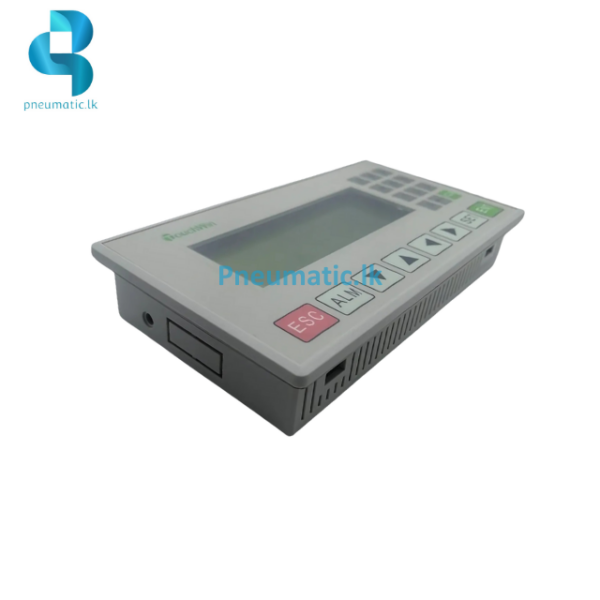

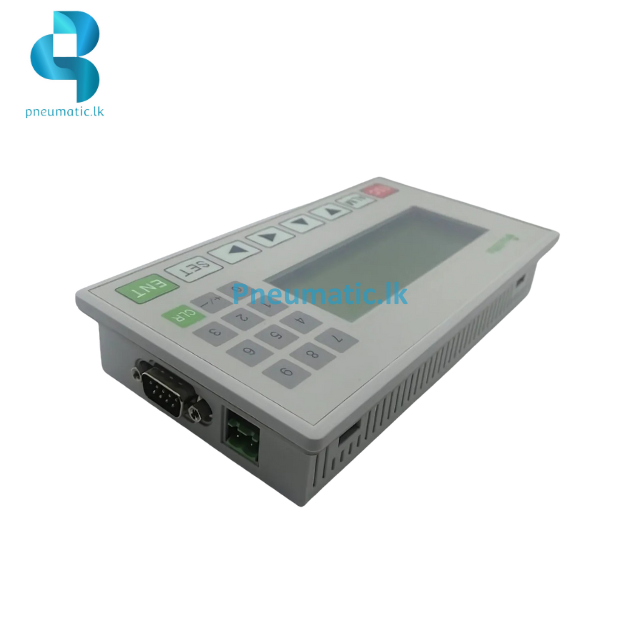

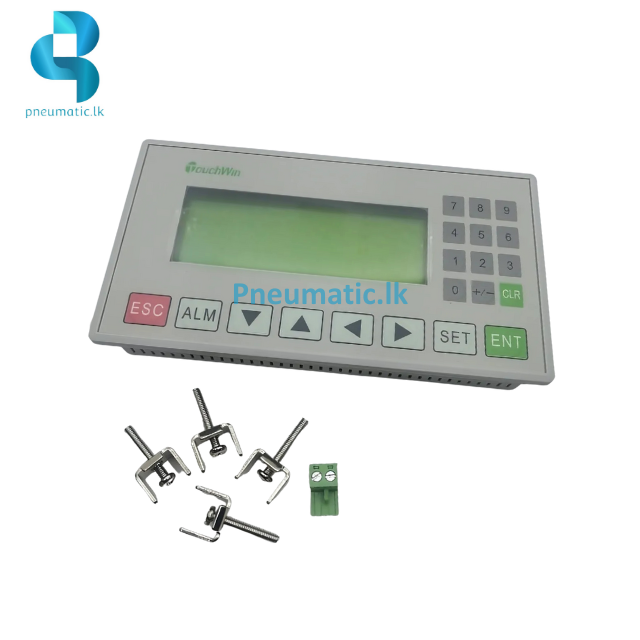

OP320-A-S | Operator Panel

OP320-A-S | Operator Panel

• Display: 4.3″ STN LCD, monochrome
• Power: DC24V 3W
• Resolution: 192 × 64 pixels
• Backlight: Yellow/green LED, adjustable brightness
• Memory: 64 KB Flash ROM
• Function Keys: 20 keys, including 12 numeric input keys
• Communication Ports:
  • RS-232
  • RS-485
  • RS-422
• Input Voltage: DC 22–26V
• Power Consumption: ≤ 4W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Humidity: 20% to 80% RH (non-condensing)
• Vibration Endurance: 10–25 Hz (X, Y, Z direction, 2G, 30 minutes)
• Protection Class: IP65F (front panel)
• Enclosure: Engineering plastic (ABS + PC)
• Dimensions:
  • Unit: 172 × 95 × 30 mm
  • Panel Cutout: 165 × 86 mm

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
