PH | Male Banjo – MODEL D-T

LKR

USD

Tube (Metric) - Thread (R)

PH04-M5
PH04-M6
PH04-01 (1/8)
PH04-02 (1/4)
PH04-03 (3/8)
PH04-04 (1/2)
PH06-M5
PH06-M6
PH06-01 (1/8)
PH06-02 (1/4)
PH06-03 (3/8)
PH06-04 (1/2)
PH08-01 (1/8)
PH08-02 (1/4)
PH08-03 (3/8)
PH08-04 (1/2)
PH10-01 (1/8)
PH10-02 (1/4)
PH10-03 (3/8)
PH10-04 (1/2)
PH12-01 (1/8)
PH12-02 (1/4)
PH12-03 (3/8)
PH12-04 (1/2)
PH14-01 (1/8)
PH14-02 (1/4)
PH14-03 (3/8)
PH14-04 (1/2)
PH16-01 (1/8)
PH16-02 (1/4)
PH16-03 (3/8)
PH16-04 (1/2)

Clear

SKU: N/A Category: One-Touch Tube Fittings

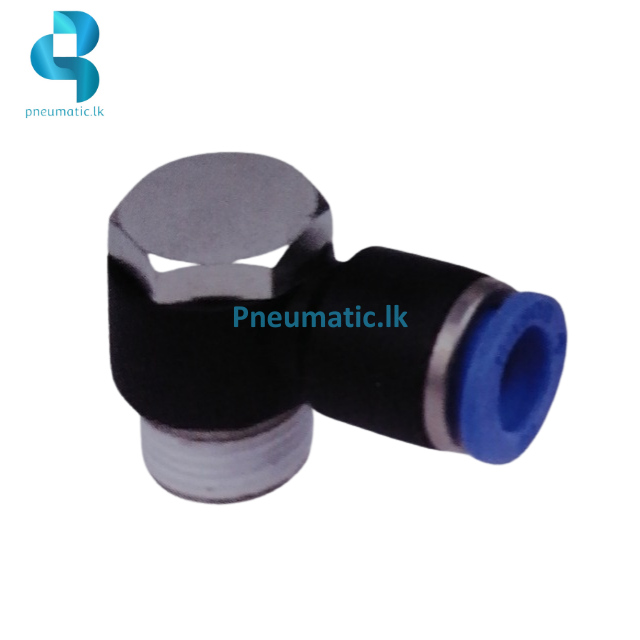

PH | Male Banjo – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Male banjo fitting for compact and directional airflow.
Material: Composite construction for durability.
Connection Style: BSPT (R thread) for secure sealing.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in BSPT sizes (1/8″, 1/4″, 3/8″, 1/2″).
Pressure Range: Operates between 0~284 PSI (0~1960 kPa).
Negative Pressure: Supports up to -29.5″ Hg (-750 mmHg).
Temperature Range: Suitable for 0 ~ 80°C environments.
Application: Ideal for pneumatic systems requiring directional airflow control.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with secure lock-claws.
- Compact design for space-saving installation.
- Allows directional adjustment of tubing after installation.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (R)	PH04-M5, PH04-M6, PH04-01 (1/8), PH04-02 (1/4), PH04-03 (3/8), PH04-04 (1/2), PH06-M5, PH06-M6, PH06-01 (1/8), PH06-02 (1/4), PH06-03 (3/8), PH06-04 (1/2), PH08-01 (1/8), PH08-02 (1/4), PH08-03 (3/8), PH08-04 (1/2), PH10-01 (1/8), PH10-02 (1/4), PH10-03 (3/8), PH10-04 (1/2), PH12-01 (1/8), PH12-02 (1/4), PH12-03 (3/8), PH12-04 (1/2), PH14-01 (1/8), PH14-02 (1/4), PH14-03 (3/8), PH14-04 (1/2), PH16-01 (1/8), PH16-02 (1/4), PH16-03 (3/8), PH16-04 (1/2)

Tube (Metric) - Thread (R)

PH04-M5, PH04-M6, PH04-01 (1/8), PH04-02 (1/4), PH04-03 (3/8), PH04-04 (1/2), PH06-M5, PH06-M6, PH06-01 (1/8), PH06-02 (1/4), PH06-03 (3/8), PH06-04 (1/2), PH08-01 (1/8), PH08-02 (1/4), PH08-03 (3/8), PH08-04 (1/2), PH10-01 (1/8), PH10-02 (1/4), PH10-03 (3/8), PH10-04 (1/2), PH12-01 (1/8), PH12-02 (1/4), PH12-03 (3/8), PH12-04 (1/2), PH14-01 (1/8), PH14-02 (1/4), PH14-03 (3/8), PH14-04 (1/2), PH16-01 (1/8), PH16-02 (1/4), PH16-03 (3/8), PH16-04 (1/2)
