PHF | Female Banjo – MODEL D-T

LKR

USD

Tube (Metric) - Thread (R)

PHF04-M5
PHF04-M6
PHF04-01 (1/8)
PHF04-02 (1/4)
PX04-03 (3/8)
PHF04-04 (1/2)
PHF06-M5
PHF06-M6
PHF06-01 (1/8)
PHF06-02 (1/4)
PHF06-03 (3/8)
PHF06-04 (1/2)
PHF08-01 (1/8)
PHF08-02 (1/4)
PHF08-03 (3/8)
PHF08-04 (1/2)
PHF10-01 (1/8)
PHF10-02 (1/4)
PHF10-03 (3/8)
PHF10-04 (1/2)
PHF12-01 (1/8)
PHF12-02 (1/4)
PHF12-03 (3/8)
PHF12-04 (1/2)
PHF14-01 (1/8)
PHF14-02 (1/4)
PHF14-03 (3/8)
PHF14-04 (1/2)
PHF16-01 (1/8)
PHF16-02 (1/4)
PHF16-03 (3/8)
PHF16-04 (1/2)

Clear

SKU: N/A Category: One-Touch Tube Fittings

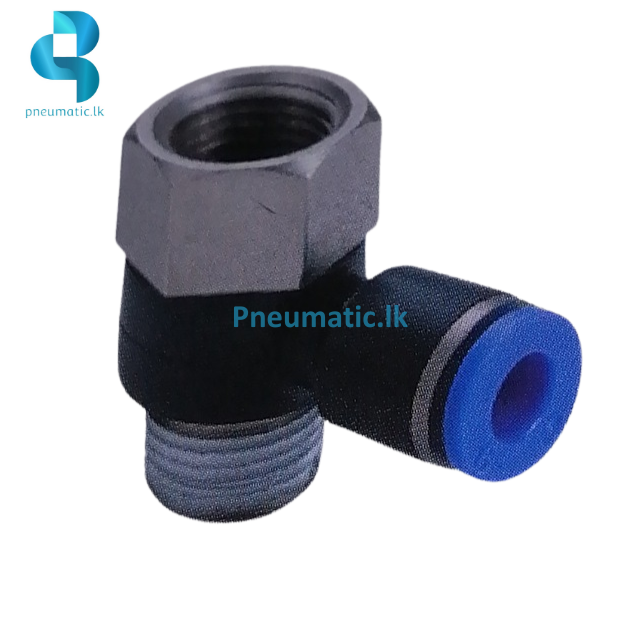

PHF | Female Banjo – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Female banjo fitting for compact and directional airflow.
Material: Composite construction for durability.
Connection Style: BSPT (R thread) for secure sealing.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in BSPT sizes (1/8″, 1/4″, 3/8″, 1/2″).
Pressure Range: Operates between 0~284 PSI (0~1960 kPa).
Negative Pressure: Supports up to -29.5″ Hg (-750 mmHg).
Temperature Range: Suitable for 0 ~ 80°C environments.
Application: Ideal for pneumatic systems requiring directional airflow control.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with secure lock-claws.
- Compact design for space-saving installation.
- Allows directional adjustment of tubing after installation.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (R)	PHF04-M5, PHF04-M6, PHF04-01 (1/8), PHF04-02 (1/4), PX04-03 (3/8), PHF04-04 (1/2), PHF06-M5, PHF06-M6, PHF06-01 (1/8), PHF06-02 (1/4), PHF06-03 (3/8), PHF06-04 (1/2), PHF08-01 (1/8), PHF08-02 (1/4), PHF08-03 (3/8), PHF08-04 (1/2), PHF10-01 (1/8), PHF10-02 (1/4), PHF10-03 (3/8), PHF10-04 (1/2), PHF12-01 (1/8), PHF12-02 (1/4), PHF12-03 (3/8), PHF12-04 (1/2), PHF14-01 (1/8), PHF14-02 (1/4), PHF14-03 (3/8), PHF14-04 (1/2), PHF16-01 (1/8), PHF16-02 (1/4), PHF16-03 (3/8), PHF16-04 (1/2)

Tube (Metric) - Thread (R)

PHF04-M5, PHF04-M6, PHF04-01 (1/8), PHF04-02 (1/4), PX04-03 (3/8), PHF04-04 (1/2), PHF06-M5, PHF06-M6, PHF06-01 (1/8), PHF06-02 (1/4), PHF06-03 (3/8), PHF06-04 (1/2), PHF08-01 (1/8), PHF08-02 (1/4), PHF08-03 (3/8), PHF08-04 (1/2), PHF10-01 (1/8), PHF10-02 (1/4), PHF10-03 (3/8), PHF10-04 (1/2), PHF12-01 (1/8), PHF12-02 (1/4), PHF12-03 (3/8), PHF12-04 (1/2), PHF14-01 (1/8), PHF14-02 (1/4), PHF14-03 (3/8), PHF14-04 (1/2), PHF16-01 (1/8), PHF16-02 (1/4), PHF16-03 (3/8), PHF16-04 (1/2)
