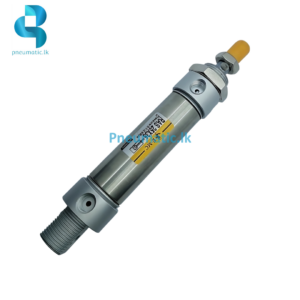

EMC Model | RAL Series | Basic Type Mini Air Cylinder
- Series: RAL Series
- Model Range: RAL16, RAL20, RAL25, etc.
- Stroke Lengths: 10 mm to 300 mm (varies by model)
- Bore Sizes: Ø16 mm, Ø20 mm, Ø25 mm, Ø32 mm (typical)
- Rod Diameter: Ø6 mm to Ø12 mm (based on bore size)
- Rod Thread: M5 to M10 (depending on size)
- Port Size: M5 or 1/8″ (based on model)
- Mounting Styles: Basic, Foot Mount, Flange, Through-hole, etc.
- Piston Type: Single Rod
- Body Material: Anodized Aluminum Alloy
- Working Medium: Filtered Compressed Air
- Operating Pressure: 0.1 – 0.7 MPa (1 – 7 bar)
- Max Pressure: 1.0 MPa (10 bar)
- Operating Temperature: -5°C to +70°C (non-freezing)
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | N/A |
|---|---|
| Model | RAL16-80, RAL16-80S, RAL16-100, RAL20-25, RAL20-30, RAL20-35, RAL25-25, RAL25-35, RAL16-100, RAL16-30, RAL20-20, RAL16-25, RAL16-21 |
