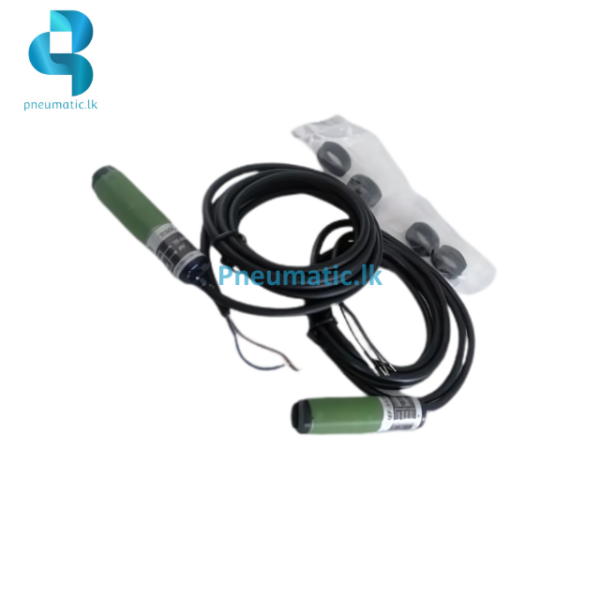

RMF-5KP2 | Photoelectric Switch Sensor
-
Sensing Type: Through beam
-
Detection Distance: Up to 5 meters
-
Light Emitter: Infrared LED (850 nm)
-
Operating Voltage: DC 12–24V
-
Current Consumption: 45 mA max.
-
Load Current: 100 mA max. at DC 24V
-
Output Type: NPN L.ON / D.ON or PNP D.ON / L.ON
-
Response Time: 650 Hz
-
Insulation Resistance: 20 MΩ min. (DC 500V)
-
Voltage Withstandability: AC 1000V 60Hz for 60 seconds
-
Operating Temperature: -25°C to +60°C
-
Operating Humidity: 35% to 85% RH
-
Protection Rating: IP66
-
Casing Material: ABS
-
Wiring Method: Receiver: Ø5.2 x 2M / 4-wires; Emitter: Ø5.2 x 2M / 2-wires
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.242 kg |
|---|
