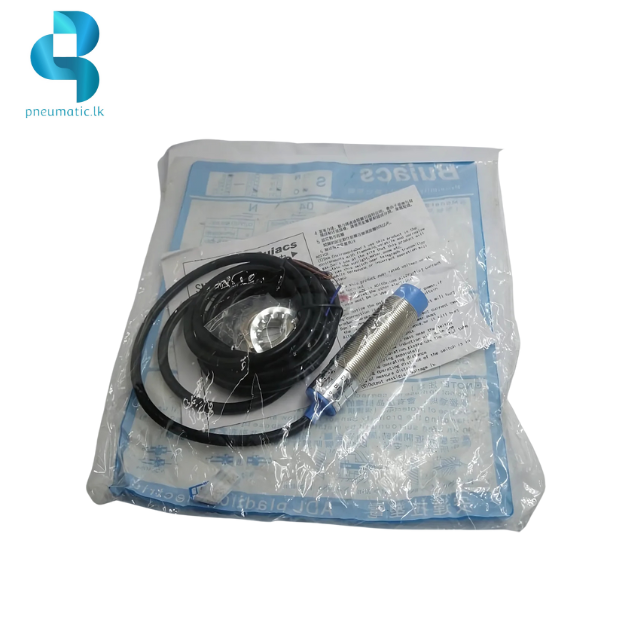

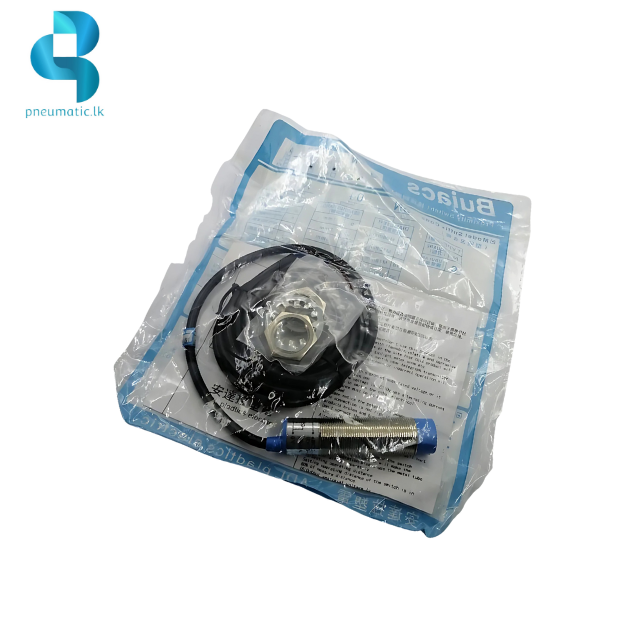

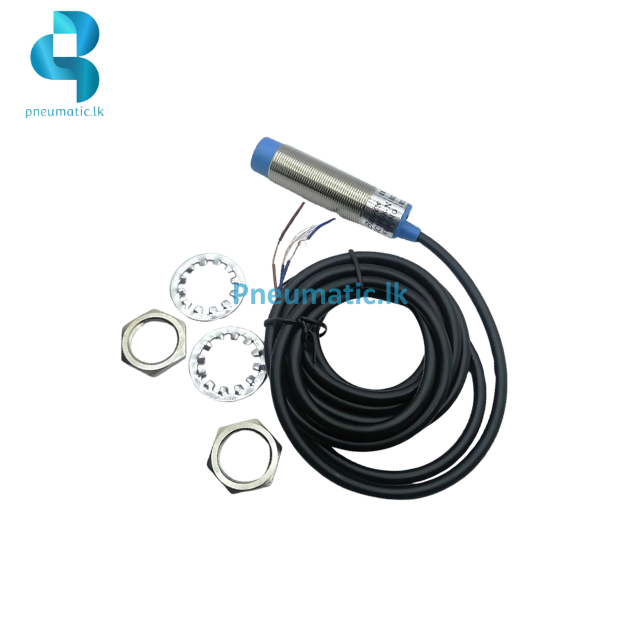

SC1808 Series | Proximity Sensor
- Sensing Distance: 8mm
- Standard Sensing Object: Iron (18 × 18 × 1 mm)
- Operating Voltage: DC 12–24V
- Current Consumption: 35mA Max
- Load Resistance: 390Ω (4–20mA output) / >10KΩ (0–10V output)
- Protection Circuits: Reverse power polarity protection & output short-circuit protection
- Temperature Drift: ≤15% Sr
- Insulation Resistance: ≥20MΩ (DC 500V)
- Voltage Withstandability: AC 1000V 60Hz for 60 sec
- Operating Temperature: -20°C to +60°C
- Protection Rating: IP66 (dust and water-resistant)
- Wiring Method: Pre-wired Ø5.2 × 2M / 3 wires
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | N/A |
|---|---|
| Model | SC1808-P, SC1808-N, SC1808-Y |
Only logged in customers who have purchased this product may leave a review.
Related products
-
-

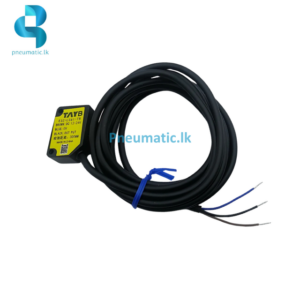

E3Z Series | Photoelectric Switch Sensor
