SMC Model | CD85N10-B Series | Double Acting Single Rod Air Cylinder

Name: SMC Model | CD85N10-B Series | Double Acting Single Rod Air Cylinder
Availability: InStock

LKR

USD

Price not available

size

CD85N10-20B
CD85N10-25B
CD85N10-35B
CD85N10-15B
CD85N10-10B

Clear

SKU: N/A Categories: Air Cylinder, SMC Cylinders

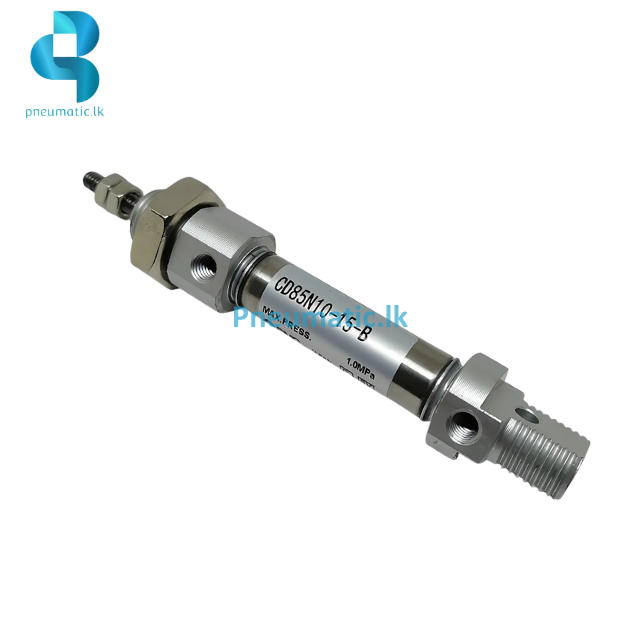

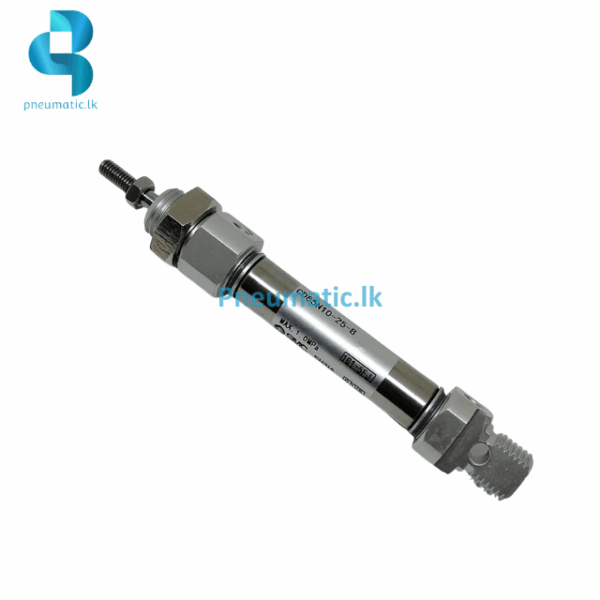

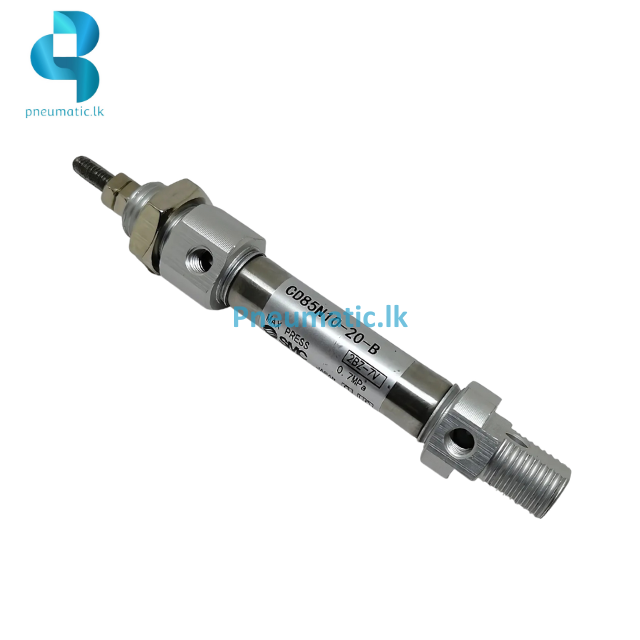

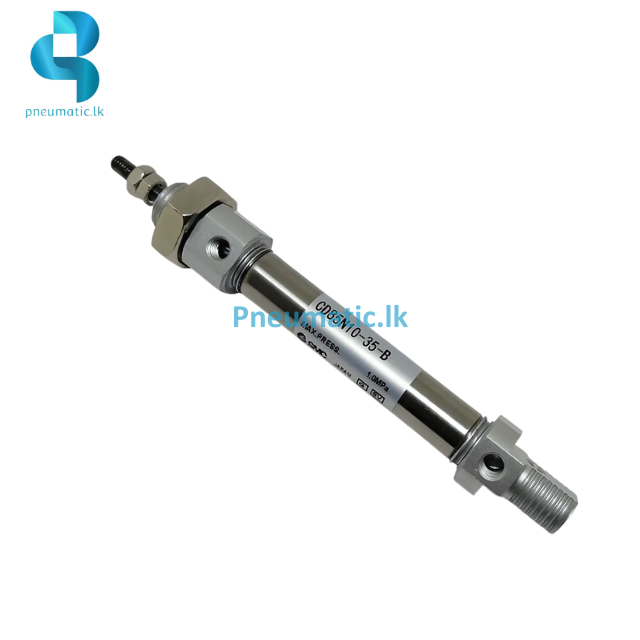

SMC Model | CD85N10-B Series | Double Acting Single Rod Air Cylinder

Bore Size: 10 mm
Stroke Options: Typically, available in 10 mm, 15 mm, 20 mm, 25 mm, and 35 mm variants
Type: Double acting, single rod
Mounting Style: Integral clevis (basic type)
Cushioning: Rubber bumper (standard)
Operating Pressure: 0.08 to 1.0 MPa
Auto Switch Compatibility: Band mounting style (optional)
Magnet: Built-in for auto switch detection
Compliance: ISO 6432 standard (C85 Series)

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
