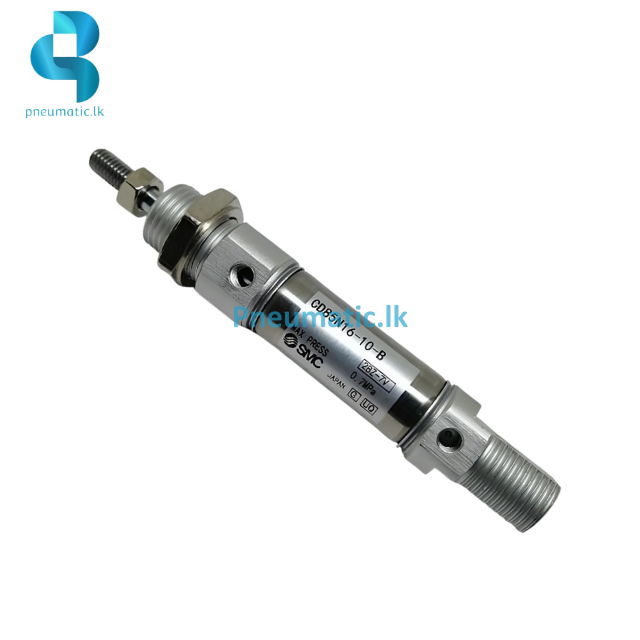

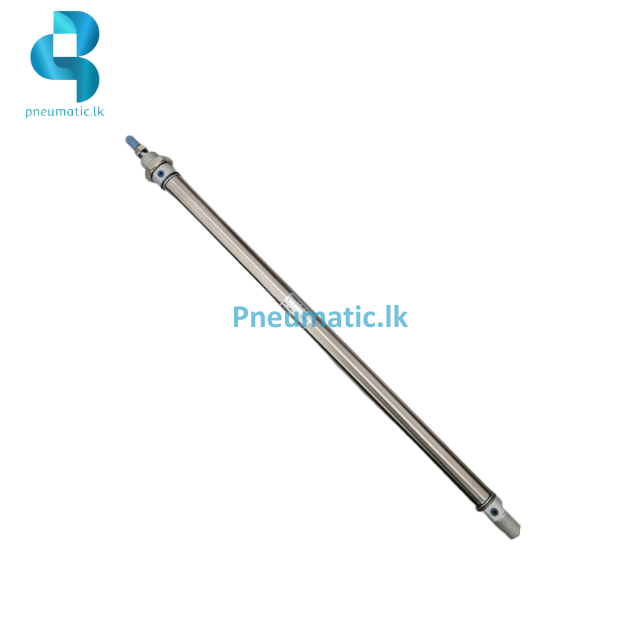

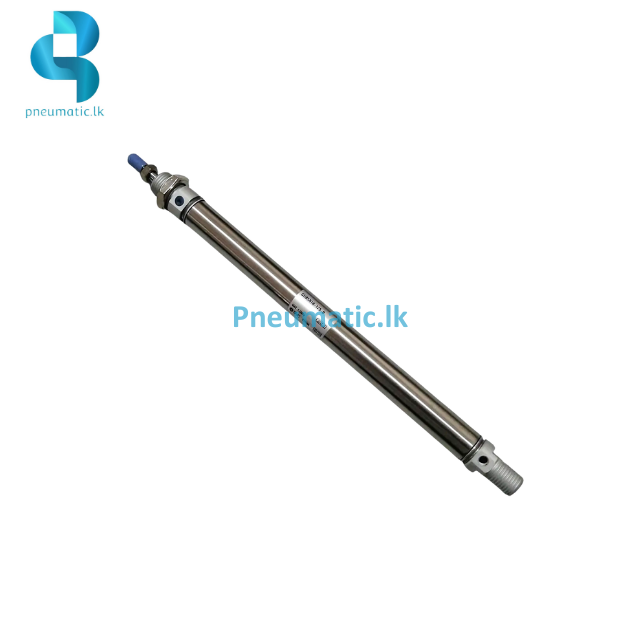

SMC Model | CD85N16-B Series | Double Acting Single Rod Air Cylinder

Name: SMC Model | CD85N16-B Series | Double Acting Single Rod Air Cylinder
Availability: InStock

LKR

USD

Price not available

size

CD85N16-15B
CD85N16-75B
CD85N16-5B
CD85N16-300B
CD85N16-10B
CD85N16-100B
CD85N16-150B
CD85N16-200B
CD85N16-250B
CD85N16-125B
CD85N16-175B
CD85N16-80B
CD85N16-95B

Clear

SKU: N/A Categories: Air Cylinder, SMC Cylinders

SMC Model | CD85N16-B Series | Double Acting Single Rod Air Cylinder

Bore Size: 16 mm
Stroke Options: Available in a wide range—5 mm to 300 mm
Cylinder Type: Double acting, single rod
Mounting Style: Integrated clevis (basic type)
Cushioning: Rubber bumper (standard)
Operating Pressure: 0.05 to 1.0 MPa
Temperature Range: -10°C to 60°C
Material: Stainless steel tube and rod for corrosion resistance
Auto Switch Compatibility: Band mounting available
Magnet: Built-in for auto switch detection
Port Size: M5×0.8
Rod Thread: M6×1 male thread

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

size	CD85N16-15B, CD85N16-75B, CD85N16-5B, CD85N16-300B, CD85N16-10B, CD85N16-100B, CD85N16-150B, CD85N16-200B, CD85N16-250B, CD85N16-125B, CD85N16-175B, CD85N16-80B, CD85N16-95B
