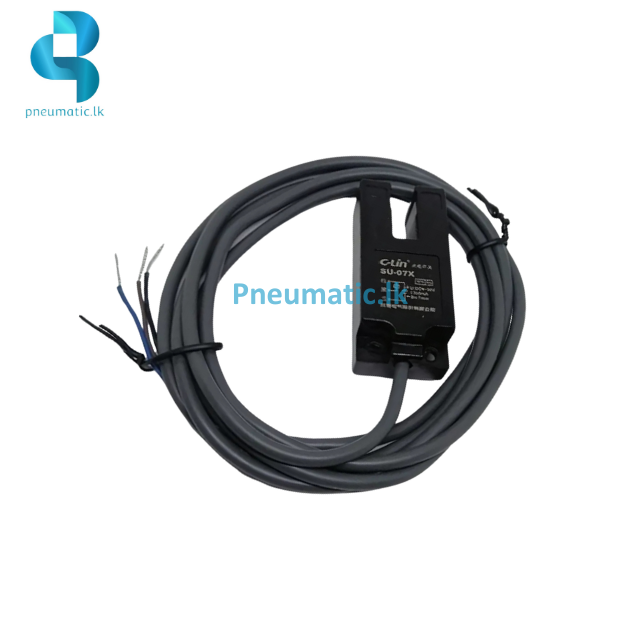

SU-07X | Photo Sensor | DC6-36V
- Sensing Type: Infrared U-type sensor
- Operating Voltage: 10-30V DC (Ripple < 20% of peak-to-peak)
- Current Consumption: 30mA max.
- Output Method: NPN & PNP two outputs
- Output Current: 150mA max.
- Protection Circuit: Short Circuit & Polarity Reversed Protection
- Minimum Sensible Object: 1.0mm
- Response Frequency: 5KHz
- Illumination Resistance: Lamplight < 5000 LUX; Sunlight < 10,000 LUX
- Connection Method: 4-core cable (3 x 2m)
- Housing Material: Intensive ABS
- Operating Temperature & Humidity: -20°C to +70°C; 35% to 85% RH
- Protection Rating: IP65
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
