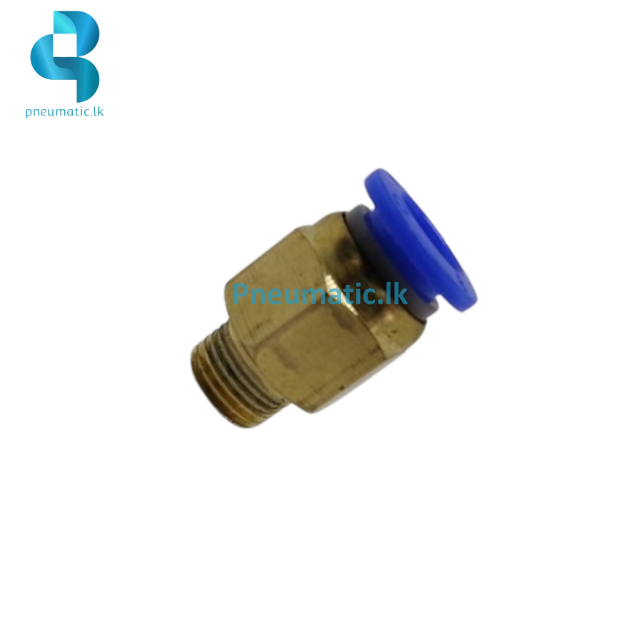

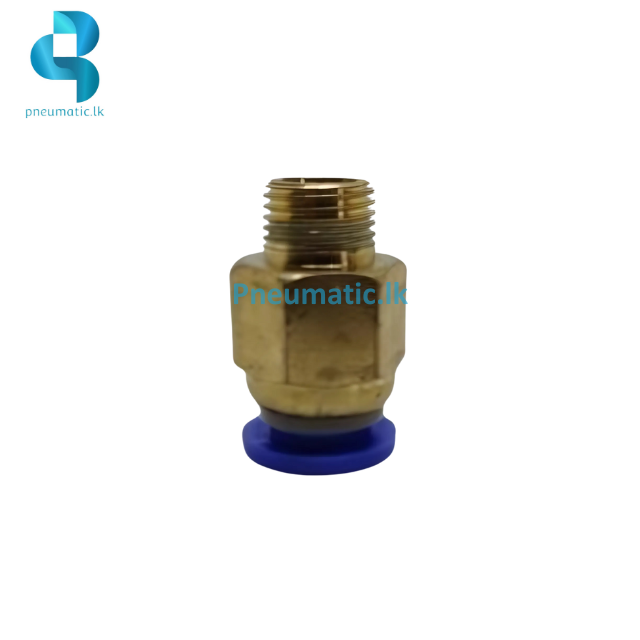

PC Series | Male Straight Connector

(1 customer review)

Price not available

PC Series

Tube Sizes: 4mm to 16mm (Metric) / 1/8″ to 1/2″ (Inch)

SKU: N/A Categories: ,

PC Series | Male Straight Connector

  • Series: PC
  • Type: Male Straight Connector
  • Tube Sizes: 4mm to 16mm (Metric) / 1/8″ to 1/2″ (Inch)
  • Thread Sizes: R, PT, BSPT, BSPP, NPT, Metric
  • Material: Nickel-plated brass for corrosion resistance
  • Working Pressure: 0∼1.0 MPa (0∼150 psi)
  • Proof Pressure: 3.0 MPa (435 psi)
  • Temperature Range: -20°C to 80°C (-4°F to 176°F)
  • Applications: Pneumatic systems, automation, air tools

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (metric) - Thread (R)

PC04-M5, PC04-M6, PC04-01 (1/8), PC04-02 (1/4), PC04-03 (3/8), PC04-04 (1/2), PC06-M5, PC06-M6, PC06-01 (1/8), PC06-02 (1/4), PC06-03 (3/8), PC06-04 (1/2), PC08-01 (1/8), PC08-02 (1/4), PC08-03 (3/8), PC08-04 (1/2), PC10-01 (1/8), PC10-02 (1/4), PC10-03 (3/8), PC10-04 (1/2), PC12-01 (1/8), PC12-02 (1/4), PC12-03 (3/8), PC12-04 (1/2), PC14-01 (1/8), PC14-02 (1/4), PC14-03 (3/8), PC14-04 (1/2), PC16-01 (1/8), PC16-02 (1/4), PC16-03 (3/ 8), PC16-04 (1/2)
