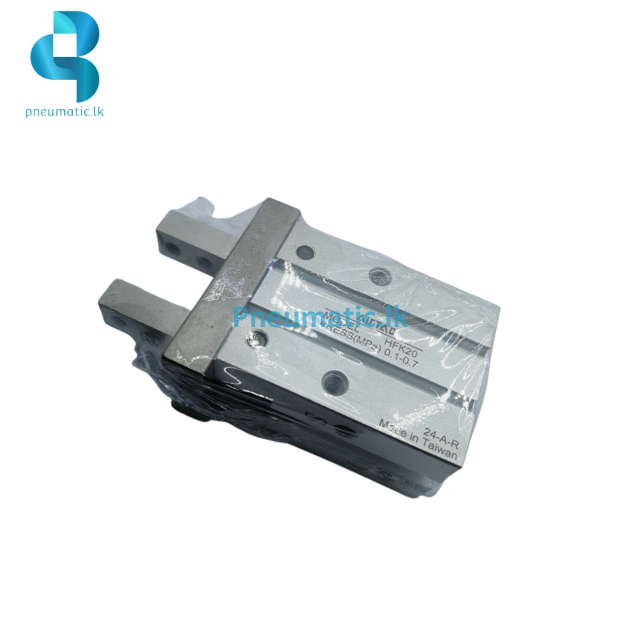

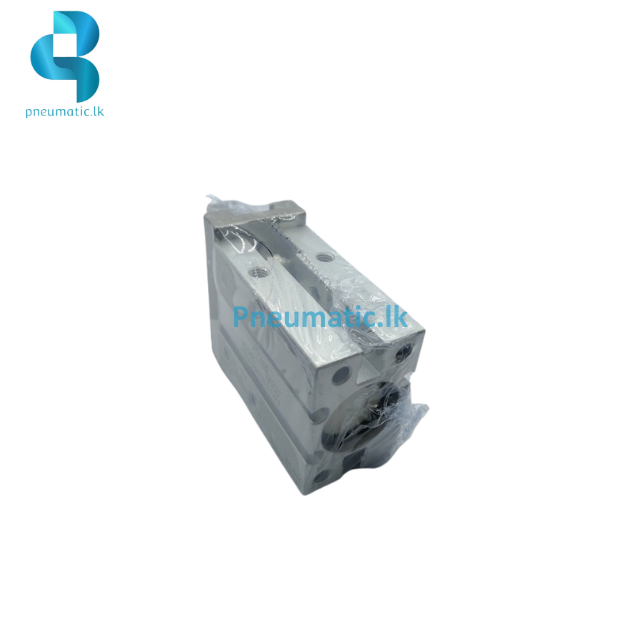

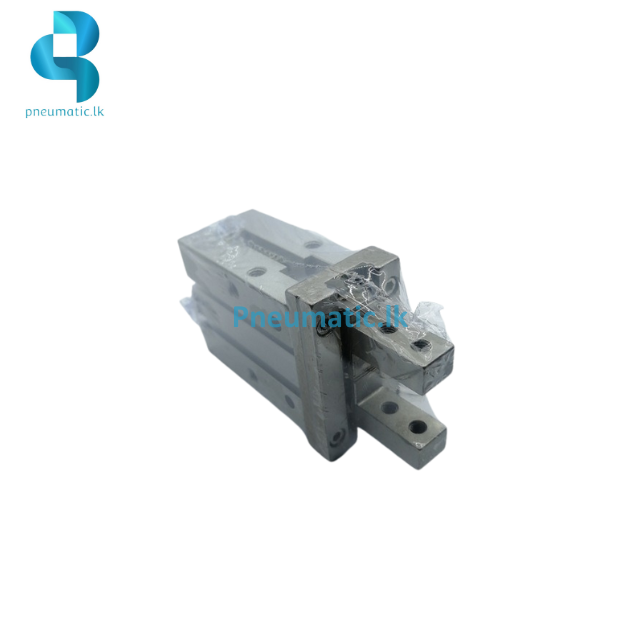

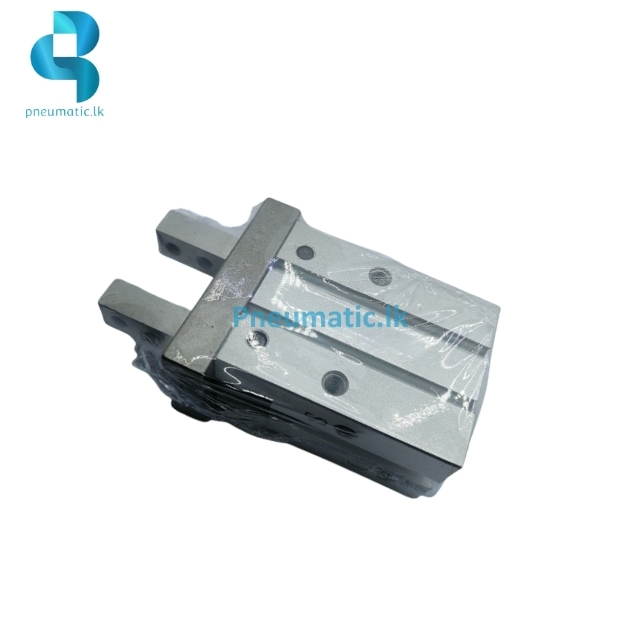

AIRTAC Model | HFK20 | Gripper
Key Specifications:
- Action Mode: Double-acting
- Bore Size: 20mm
- Working Medium: Air (filtered by 40μm filter)
- Operating Pressure Range: 0.15~0.7 MPa (22~100 psi)
- Working Temperature: -20°C to 70°C (under non-freezing conditions)
- Operating Maximum Frequency: 180 cycles per minute (c.p.m)
- Buffer Method: Crash pad
- Oil Supply: The cylinder does not need oil supply; the gripper needs grease
- Sensor Switch: DS1-H; CS1-G; DS1-G
- Mounting Type: Through-hole mounting finger type
Features:
- High Rigidity and Precision: Integrated design of linear guide rail for high rigidity and precision
- Positioning Pin: Prevents deviation of the positioning rail and body
- Deep Body Hole: Improves precision and consistency of repeated dismounting and positioning
- Customizable Initial Position: Can be customized to meet different working conditions
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.268 kg |
|---|---|
| size | HFK20, HFK-16 |
Only logged in customers who have purchased this product may leave a review.
AIRTAC Model | HFK20 | Gripper
14,625.00 LKR
