Sale!

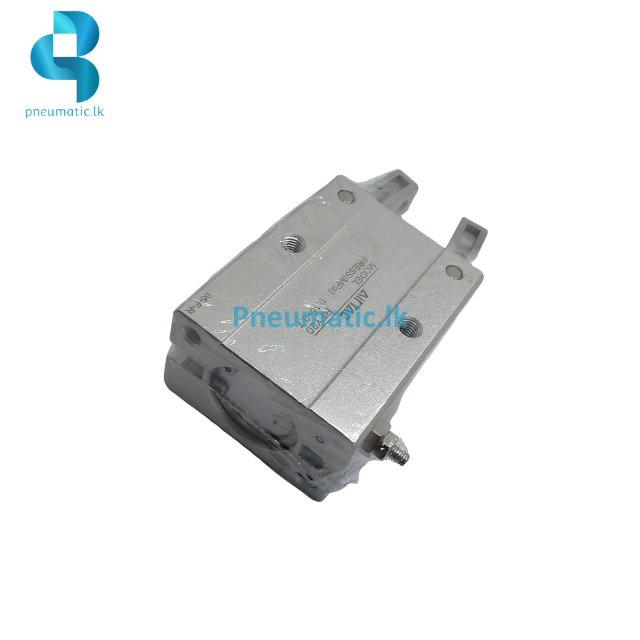

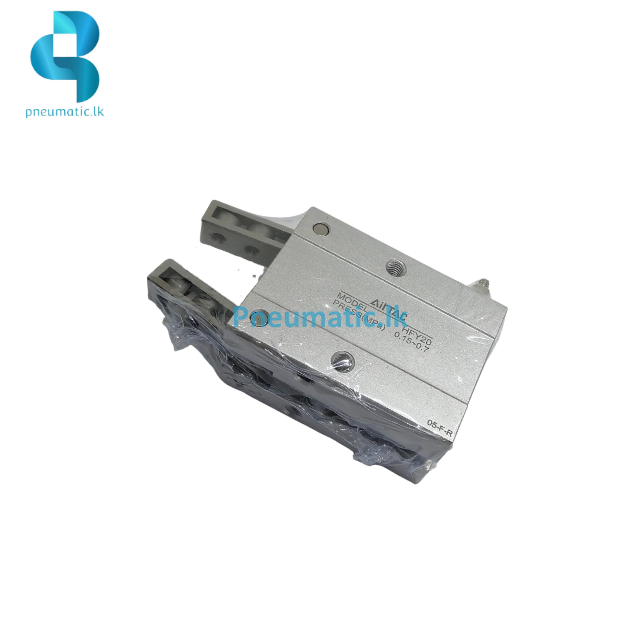

AIRTAC Model | HFY20 | Air Gripper
14,985.00 LKR
HFY Series
Type : Main Body
Gripping Methods: Inserted swing type of opening
Number of Fingers: 2 pcs
Main Body Shape: square type
In Stock: 9
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.
AIRTAC Model | HFY20 | Air Gripper
Key Specifications:
- Action Mode: Double-acting
- Working Medium: Air (filtered by 40μm filter)
- Operating Pressure Range: 0.15~0.7 MPa (22~100 psi)
- Working Temperature: -20°C to 70°C (under non-freezing conditions)
- Operating Maximum Frequency: 180 cycles per minute (c.p.m)
- Buffer Method: Crash pad
- Oil Supply: The cylinder does not need oil supply; the gripper needs grease
- Sensor Switch: DS1-H; CS1-G; DS1-G
- Mounting Type: Various types of installation methods available
Features:
- Large Clamping Torque: Double-piston structure provides large gripping torque
- Adjustable Speed: Equipped with a variable throttle valve for easy adjustment of opening and closing speed
- Wide Application Range: Reasonable clamping angle for various applications
- Precise Positioning Accuracy: More accurate and reliable when gripping workpiece
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.184 kg |
|---|
