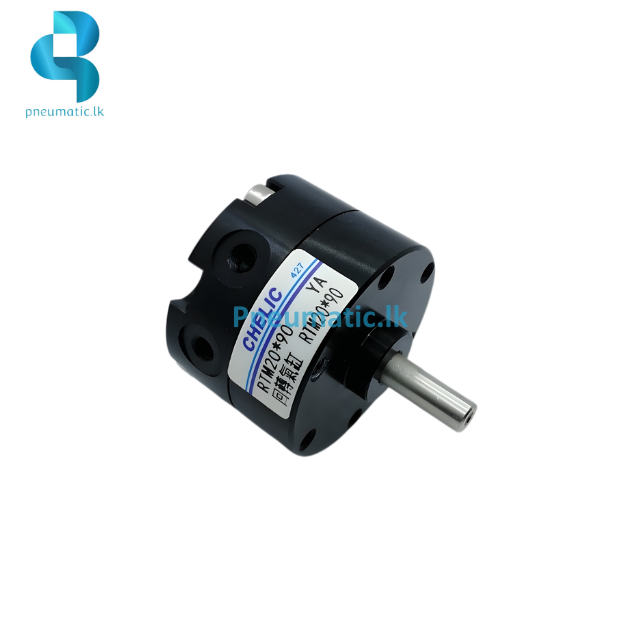

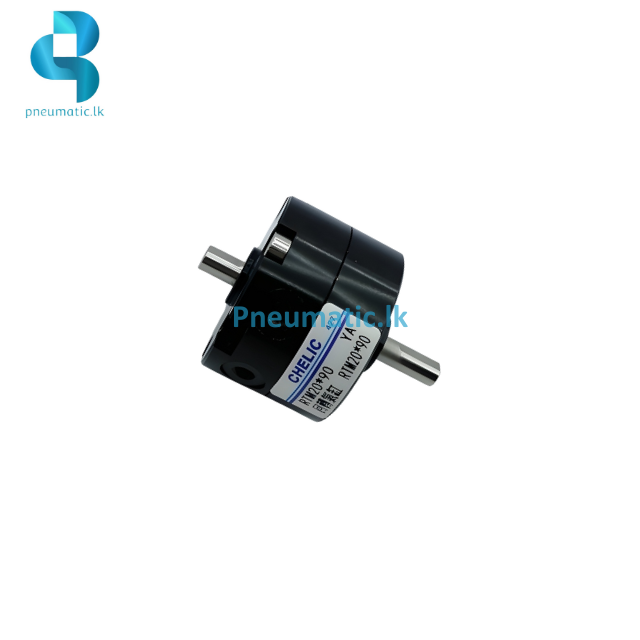

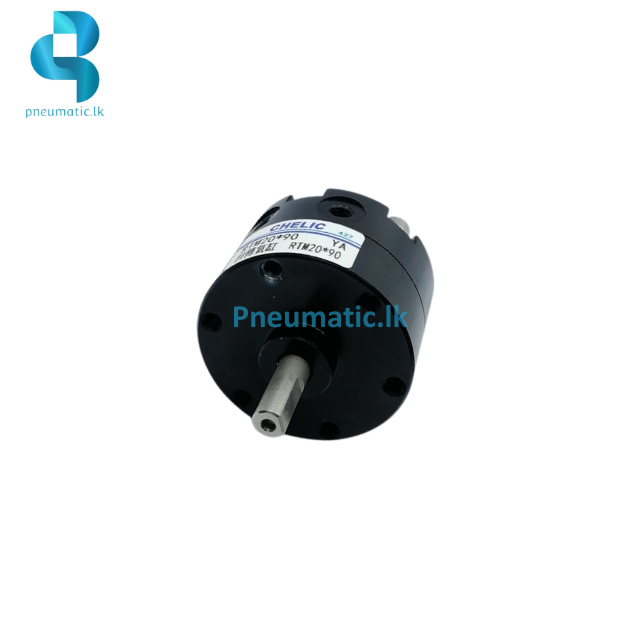

CHELIC Model | RTM20-90 | Vane Type Rotary Actuator
- Type: Vane Type Rotary Actuator
- Operation: Double acting
- Bore Size: 6 mm
- Rotation Angle: 90°
- Port Size: M5 × 0.8p
- Torque Force (Nm.): 0.78
- Working Fluid: Compressed air
- Operating Pressure Range: 2 kgf/cm² to 7 kgf/cm² (200 kPa to 700kPa)
- Temperature Range: 0°C to 50°C
- Material: Aluminum alloy
- Application: Provides 90° pneumatic rotary motion for part positioning, indexing, valve actuation
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Weight | 0.142 kg |
|---|
CHELIC Model | RTM20-90 | Vane Type Rotary Actuator
35,625.00 LKR
