CHELIC TD-10 Series | Dual Rod | Air Cylinder

Price not available

SKU: N/A Categories: ,

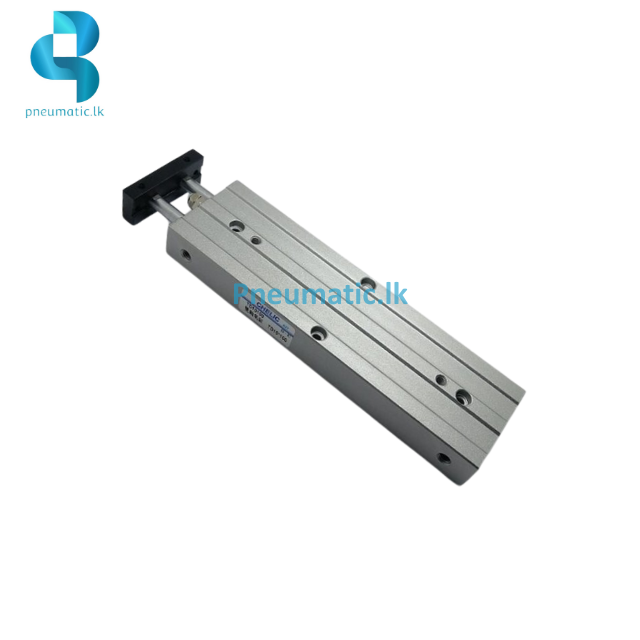

CHELIC TD-10 Series | Dual Rod | Air Cylinder

  • Double-acting operation with dual rods and pistons for increased output force.
  • Bore sizes: Ø6, Ø10, Ø16, Ø20, Ø25, Ø32, Ø40 mm.
  • Stroke range: Adjustable from -5 to 0 mm.
  • Operating pressure: 1 to 8.5 kgf/cm² (100–850 kPa), with a max of 9 kgf/cm² (900 kPa).
  • Speed range: 50 to 700 mm/sec.
  • Temperature range: 0–60°C.
  • Port sizes: Vary by bore size (e.g., M3×0.5 for Ø6, PT1/8 for Ø32/Ø40).
  • Magnet-equipped for sensor compatibility.
  • Dust-proof rod seal to extend service life

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Weight N/A
Size

TD10-100
