E3Z Series | Photoelectric Switch Sensor

Name: E3Z Series | Photoelectric Switch Sensor
Availability: InStock

LKR

USD

3,975.00 LKR – 9,985.00 LKR

E3Z Series

Model

E3Z-D61
E3Z-D62

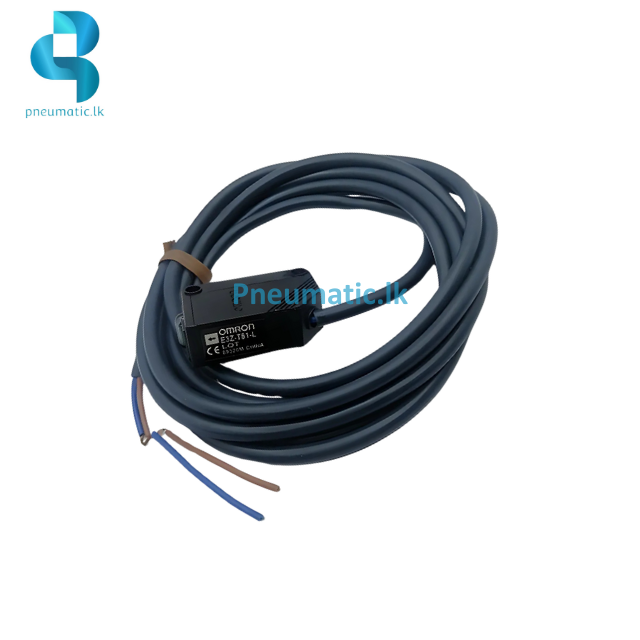

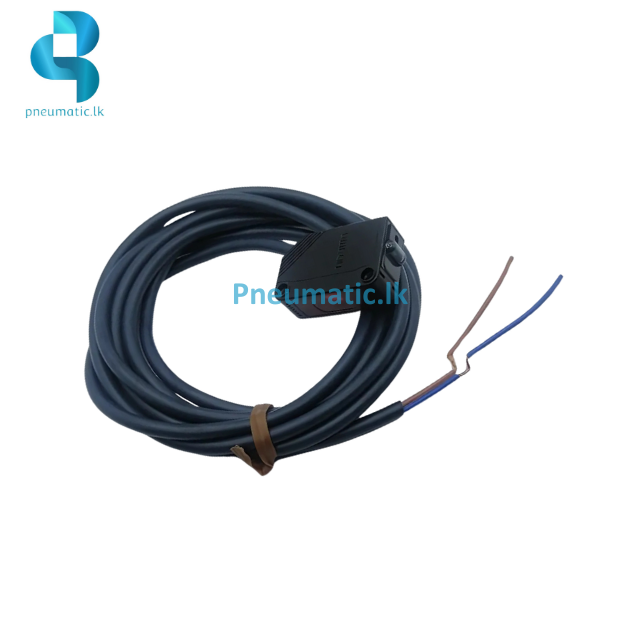

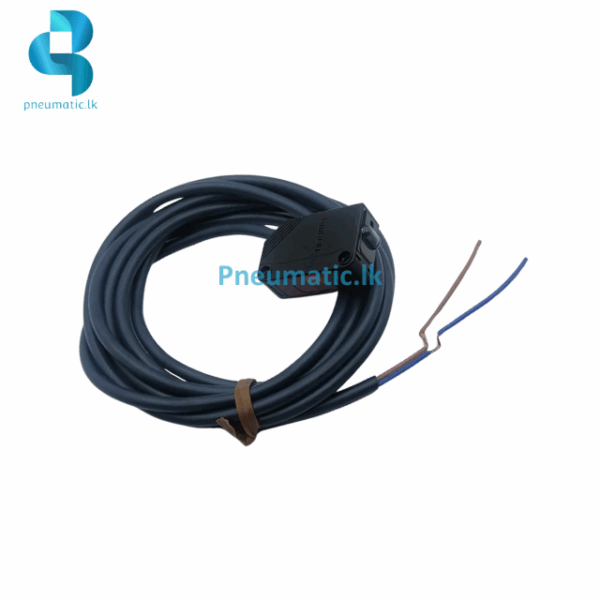

E3Z-T81
E3Z-D82
E3Z-D81
E3Z-R81
E3Z-R61

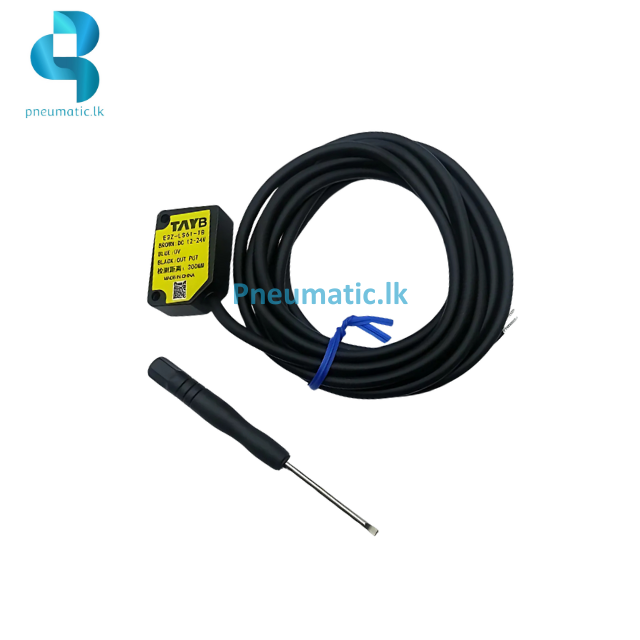

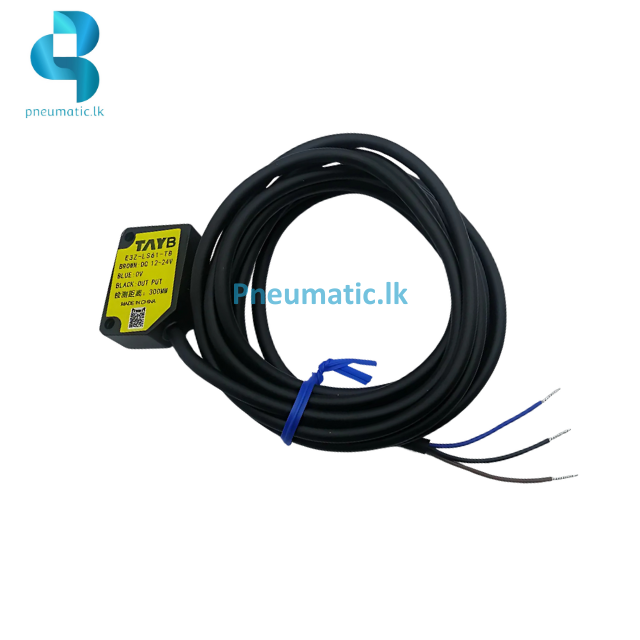

E3Z-LS61-TB
E3Z-LS61

Clear

SKU: N/A Category: E3Z Series, Sensor, Sensors

E3Z Series | Photoelectric Switch Sensor

Sensing Methods: Through-beam, Retro-reflective, Diffuse-reflective
Sensing Distance:
- Through-beam: Up to 30m
- Retro-reflective: Up to 4m (with MSR function)
- Diffuse-reflective: Up to 1m
Light Source:
- Infrared LED (870 nm)
- Red LED (660 nm)
Standard Sensing Object:
- Opaque objects (12mm dia. min. for through-beam)
- 75mm dia. min. for retro-reflective
Response Time:
- 1ms max. (through-beam & diffuse-reflective)
- 2ms max. (retro-reflective)
Protection Rating: IP67 (dust and water-resistant)
Operating Temperature: -40°C to 55°C
Connection Methods:
- Pre-wired cable (2m, 0.5m)
- M8 connector
Material:
- Case: PBT (polybutylene terephthalate)
- Lens: Modified polyarylate or methacrylic resin

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
