PBF | Female Branch Tee – MODEL D-T

LKR

USD

Tube (Metric) - Thread (R)

PBF04-M5
PBF04-M6
PBF04-01 (1/8)
PBF04-02 (1/4)
PBF04-03 (3/8)
PBF04-04 (1/2)
PBF06-M5
PBF06-M6
PBF06-01 (1/8)
PBF06-02 (1/4)
PBF06-03 (3/8)
PBF06-04 (1/2)
PBF08-01 (1/8)
PBF08-02 (1/4)
PBF08-03 (3/8)
PBF08-04 (1/2)
PBF10-01 (1/8)
PBF10-02 (1/4)
PBF10-03 (3/8)
PBF10-04 (1/2)
PBF12-01 (1/8)
PBF12-02 (1/4)
PBF12-03 (3/8)
PBF12-04 (1/2)
PBF14-01 (1/8)
PBF14-02 (1/4)
PBF14-03 (3/8)
PBF14-04 (1/2)
PBF16-01 (1/8)
PBF16-02 (1/4)
PBF16-03 (3/8)
PBF16-04 (1/2)

Clear

SKU: N/A Category: One-Touch Tube Fittings

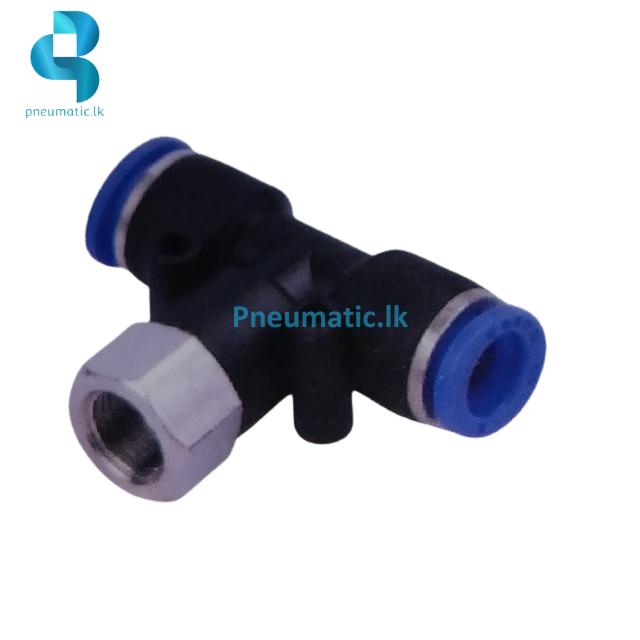

PBF | Female Branch Tee – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Female branch tee fitting for 90-degree connections.
Material: Durable thermoplastic (PBT) with nickel-plated brass thread.
Connection Style: Push-to-connect tube with BSPT (R) thread.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in BSPT sizes (1/8″, 1/4″, 3/8″, 1/2″).
Pressure Range: Operates between 0~150 PSI (0~1.0 MPa).
Temperature Range: Suitable for 0 ~ 60°C environments.
Application: Ideal for pneumatic systems requiring secure and easy tube connections.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with strong tube grip.
- Swivel thread allows directional adjustment after installation.
- Space-saving and cost-efficient.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (R)	PBF04-M5, PBF04-M6, PBF04-01 (1/8), PBF04-02 (1/4), PBF04-03 (3/8), PBF04-04 (1/2), PBF06-M5, PBF06-M6, PBF06-01 (1/8), PBF06-02 (1/4), PBF06-03 (3/8), PBF06-04 (1/2), PBF08-01 (1/8), PBF08-02 (1/4), PBF08-03 (3/8), PBF08-04 (1/2), PBF10-01 (1/8), PBF10-02 (1/4), PBF10-03 (3/8), PBF10-04 (1/2), PBF12-01 (1/8), PBF12-02 (1/4), PBF12-03 (3/8), PBF12-04 (1/2), PBF14-01 (1/8), PBF14-02 (1/4), PBF14-03 (3/8), PBF14-04 (1/2), PBF16-01 (1/8), PBF16-02 (1/4), PBF16-03 (3/8), PBF16-04 (1/2)

Tube (Metric) - Thread (R)

PBF04-M5, PBF04-M6, PBF04-01 (1/8), PBF04-02 (1/4), PBF04-03 (3/8), PBF04-04 (1/2), PBF06-M5, PBF06-M6, PBF06-01 (1/8), PBF06-02 (1/4), PBF06-03 (3/8), PBF06-04 (1/2), PBF08-01 (1/8), PBF08-02 (1/4), PBF08-03 (3/8), PBF08-04 (1/2), PBF10-01 (1/8), PBF10-02 (1/4), PBF10-03 (3/8), PBF10-04 (1/2), PBF12-01 (1/8), PBF12-02 (1/4), PBF12-03 (3/8), PBF12-04 (1/2), PBF14-01 (1/8), PBF14-02 (1/4), PBF14-03 (3/8), PBF14-04 (1/2), PBF16-01 (1/8), PBF16-02 (1/4), PBF16-03 (3/8), PBF16-04 (1/2)
