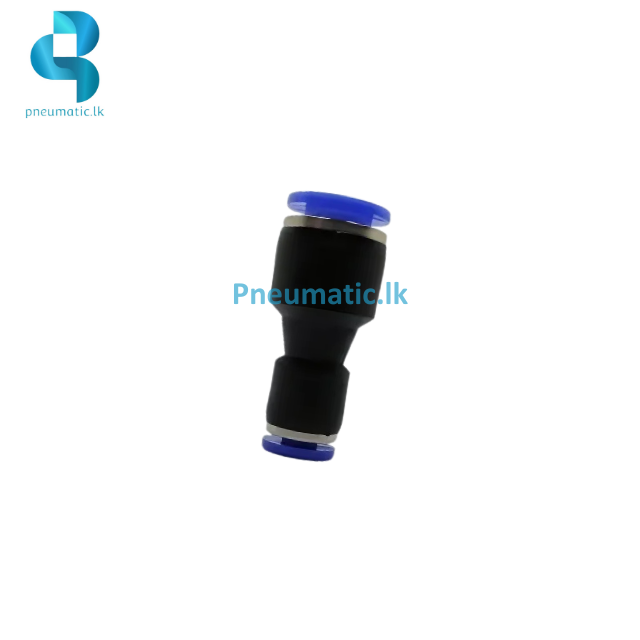

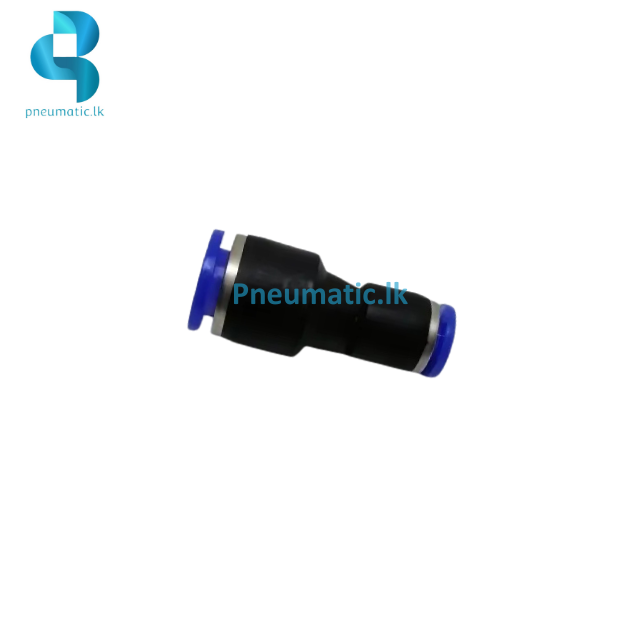

PG Series | Reducer Straight
- Connection Type: Push-to-connect
- Tube Sizes: Metric (4mm to 16mm) and Inch (1/8″ to 5/8″)
- Body Material: PBT thermoplastic
- Seal Material: NBR (Buna-N)
- Working Pressure: 0-150 psi (1.0 MPa)
- Proof Pressure: 3.0 MPa (435 psi)
- Temperature Range: 0°C to 60°C (32°F to 140°F)
- Vacuum Rating: -100 kPa (-29.5 in Hg)
- Applications: Ideal for pneumatic systems requiring reliable tube size reduction
If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
| Tube (Metric) | PG06-04, PG08-04, PG08-06, PG10-06, PG10-08, PG12-06, PG12-08, PG12-10, PG14-10, PG14-12, PG16-12 |
|---|
