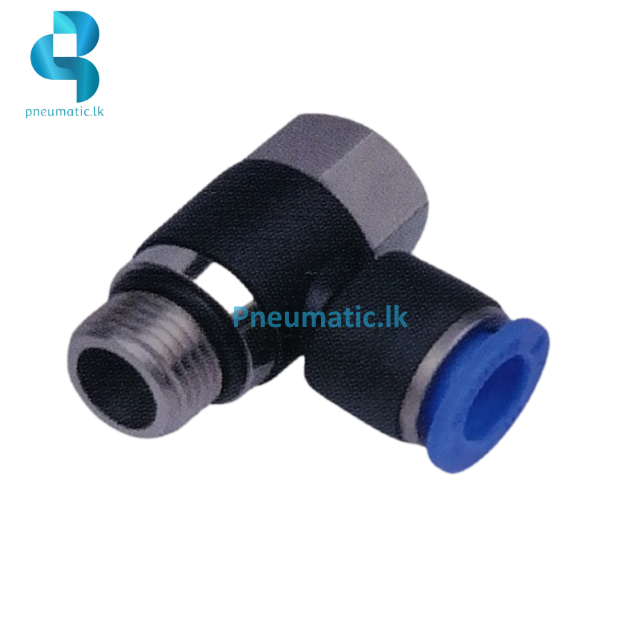

PHF-G | Female Banjo - MODEL D-T

PHF-G | Female Banjo – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Female banjo fitting for compact and directional airflow.
Material: Nickel-plated brass for durability.
Connection Style: BSPP (G thread) with O-ring for secure sealing.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in G1/8″, G1/4″, G3/8″, G1/2″.
Pressure Range: Operates between 0~150 PSI (0~990 kPa).
Negative Pressure: Supports up to -29.5″ Hg (-750 mmHg).
Temperature Range: Suitable for 0 ~ 60°C environments.
Application: Ideal for pneumatic systems requiring directional airflow control.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with O-ring for enhanced sealing.
- Compact design for space-saving installation.
- Allows directional adjustment of tubing after installation.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (G)	PHF04-G01 (1/8), PHF04-G02 (1/4), PHF04-G03 (3/8), PHF04-G04 (1/2), PHF06-G01 (1/8), PHF06-G02 (1/4), PHF06-G03 (3/8), PHF06-G04 (1/2), PHF08-G01 (1/8), PHF08-G02 (1/4), PHF08-G03 (3/8), PHF08-G04 (1/2), PHF10-G01 (1/8), PHF10-G02 (1/4), PHF10-G03 (3/8), PHF10-G04 (1/2), PHF12-G01 (1/8), PHF12-G02 (1/4), PHF12-G03 (3/8), PHF12-G04 (1/2), PHF14-G01 (1/8), PHF14-G02 (1/4), PHF14-G03 (3/8), PHF14-G04 (1/2), PHF16-G01 (1/8), PHF16-G02 (1/4), PHF16-G03 (3/8), PHF16-G04 (1/2)

Tube (Metric) - Thread (G)

PHF04-G01 (1/8), PHF04-G02 (1/4), PHF04-G03 (3/8), PHF04-G04 (1/2), PHF06-G01 (1/8), PHF06-G02 (1/4), PHF06-G03 (3/8), PHF06-G04 (1/2), PHF08-G01 (1/8), PHF08-G02 (1/4), PHF08-G03 (3/8), PHF08-G04 (1/2), PHF10-G01 (1/8), PHF10-G02 (1/4), PHF10-G03 (3/8), PHF10-G04 (1/2), PHF12-G01 (1/8), PHF12-G02 (1/4), PHF12-G03 (3/8), PHF12-G04 (1/2), PHF14-G01 (1/8), PHF14-G02 (1/4), PHF14-G03 (3/8), PHF14-G04 (1/2), PHF16-G01 (1/8), PHF16-G02 (1/4), PHF16-G03 (3/8), PHF16-G04 (1/2)
