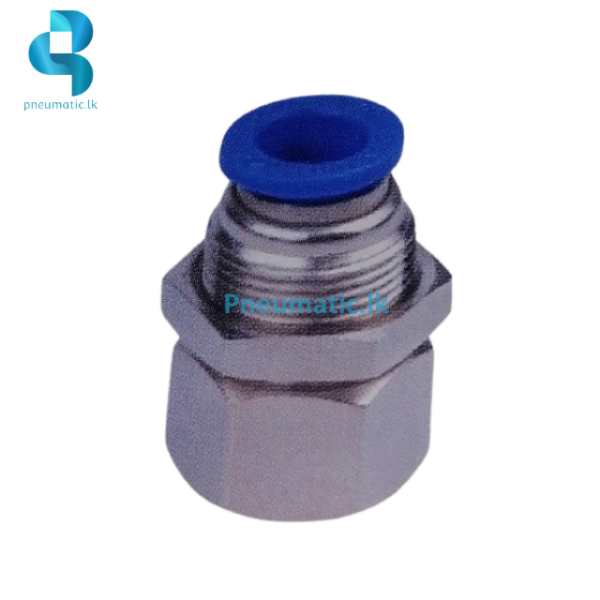

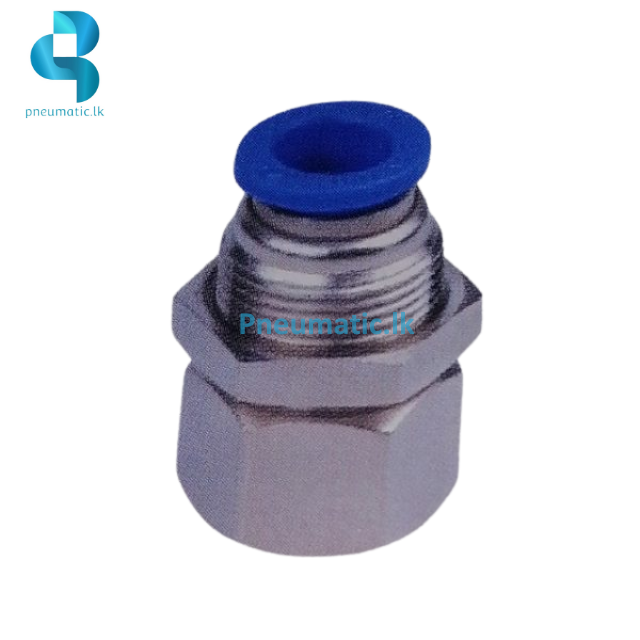

PMF | Bulkhead Female Straight - MODEL D-T

PMF | Bulkhead Female Straight – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Bulkhead female straight fitting.
Material: Composite construction for durability.
Connection Style: Threaded-to-tube connection.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in BSPT sizes (1/2″, 3/8″, 1/4″, 1/8″).
Pressure Range: Operates between 0~284 PSI (0~1960 kPa).
Negative Pressure: Supports up to -29.5″ Hg (-750 mmHg).
Temperature Range: Suitable for 0 ~ 80°C environments.
Application: Ideal for pneumatic systems requiring secure and easy tube connections.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with secure lock-claws.
- Allows directional adjustment of tubing after installation.
- Space-saving and cost-efficient

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (R)	PMF04-01 (1/8), PMF04-02 (1/4), PMF04-03 (3/8), PMF04-04 (1/2), PMF06-01 (1/8), PMF06-02 (1/4), PMF06-03 (3/8), PMF06-04 (1/2), PMF08-01 (1/8), PMF08-02 (1/4), PMF08-03 (3/8), PMF08-04 (1/2), PMF10-01 (1/8), PMF10-02 (1/4), PMF10-03 (3/8), PMF10-04 (1/2), PMF12-01 (1/8), PMF12-02 (1/4), PMF12-03 (3/8), PMF12-04 (1/2), PMF14-01 (1/8), PMF14-02 (1/4), PMF14-03 (3/8), PMF14-04, PMF16-01 (1/8), PMF16-02 (1/4), PMF16-03 (3/8), PMF16-04 (1/2)

Tube (Metric) - Thread (R)

PMF04-01 (1/8), PMF04-02 (1/4), PMF04-03 (3/8), PMF04-04 (1/2), PMF06-01 (1/8), PMF06-02 (1/4), PMF06-03 (3/8), PMF06-04 (1/2), PMF08-01 (1/8), PMF08-02 (1/4), PMF08-03 (3/8), PMF08-04 (1/2), PMF10-01 (1/8), PMF10-02 (1/4), PMF10-03 (3/8), PMF10-04 (1/2), PMF12-01 (1/8), PMF12-02 (1/4), PMF12-03 (3/8), PMF12-04 (1/2), PMF14-01 (1/8), PMF14-02 (1/4), PMF14-03 (3/8), PMF14-04, PMF16-01 (1/8), PMF16-02 (1/4), PMF16-03 (3/8), PMF16-04 (1/2)
