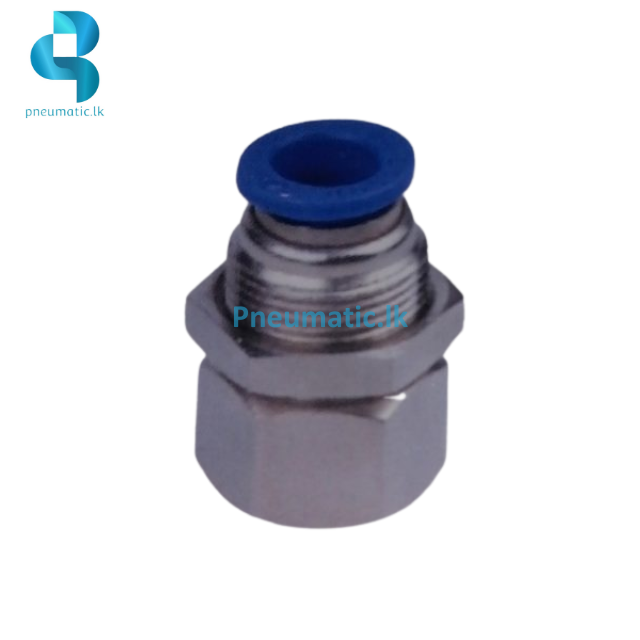

PMF-G | Bulkhead Female Straight - MODEL D-T

PMF-G | Bulkhead Female Straight – MODEL D-T

Type: One-touch tube fitting for pneumatic piping.
Design: Bulkhead female straight fitting with an O-ring.
Material: Nickel-plated brass for durability.
Connection Style: BSPP (G thread) with O-ring for secure sealing.
Tube Compatibility: Works with polyurethane and nylon tubes.
Thread Options: Available in G1/8″, G1/4″, G3/8″, G1/2″.
Pressure Range: Operates between 0~150 PSI (0~1.0 MPa).
Temperature Range: Suitable for 0 ~ 60°C environments.
Application: Ideal for pneumatic systems requiring secure and easy tube connections.
Features:
- Quick and easy tube connection/disconnection.
- Leak-proof design with O-ring for enhanced sealing.
- Stainless steel grab-ring for strong tube grip.
- Space-saving and cost-efficient.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Tube (Metric) - Thread (G)	PMF04-G01 (1/8), PMF04-G02 (1/4), PMF04-G03 (3/8), PMF04-G04 (1/2), PMF06-G01 (1/8), PMF06-G02 (1/4), PMF06-G03 (3/8), PMF06-G04 (1/2), PMF08-G01 (1/8), PMF08-G02 (1/4), PMF08-G03 (3/8), PMF08-G04 (1/2), PMF10-G01 (1/8), PMF10-G02 (1/4), PMF10-G03 (3/8), PMF10-G04 (1/2), PMF12-G01 (1/8), PMF12-G02 (1/4), PMF12-G03 (3/8), PMF12-G04 (1/2), PMF14-G01 (1/8), PMF14-G02 (1/4), PMF14-G03 (3/8), PMF14-G04, PMF16-G01 (1/8), PMF16-G02 (1/4), PMF16-G03 (3/8), PMF16-G04 (1/2)

Tube (Metric) - Thread (G)

PMF04-G01 (1/8), PMF04-G02 (1/4), PMF04-G03 (3/8), PMF04-G04 (1/2), PMF06-G01 (1/8), PMF06-G02 (1/4), PMF06-G03 (3/8), PMF06-G04 (1/2), PMF08-G01 (1/8), PMF08-G02 (1/4), PMF08-G03 (3/8), PMF08-G04 (1/2), PMF10-G01 (1/8), PMF10-G02 (1/4), PMF10-G03 (3/8), PMF10-G04 (1/2), PMF12-G01 (1/8), PMF12-G02 (1/4), PMF12-G03 (3/8), PMF12-G04 (1/2), PMF14-G01 (1/8), PMF14-G02 (1/4), PMF14-G03 (3/8), PMF14-G04, PMF16-G01 (1/8), PMF16-G02 (1/4), PMF16-G03 (3/8), PMF16-G04 (1/2)
