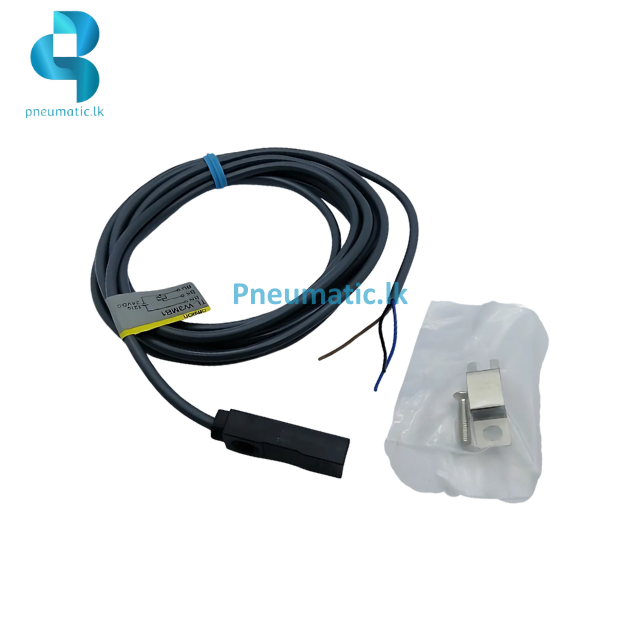

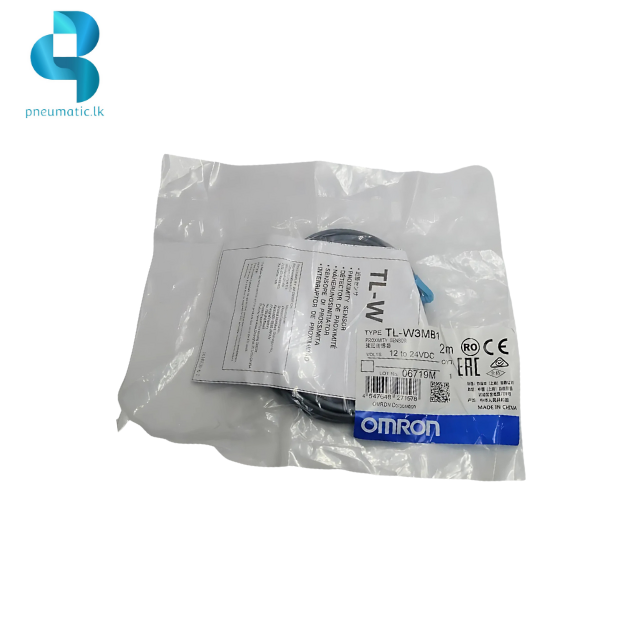

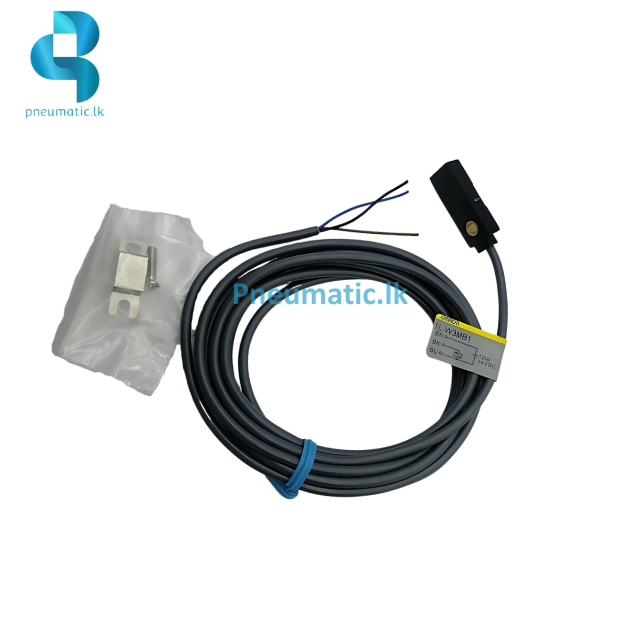

TL-W3MB1 | Proximity Sensor

8,450.00 LKR

12-24V DC

3mm detection range

PNP output

In Stock: 12
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 047041 Categories: ,

TL-W3MB1 | Proximity Sensor

  • Sensing Type: Inductive
  • Detection Distance: 3mm
  • Output Type: PNP, Normally Open (NO)
  • Configuration: 3-wire DC (Brown: +V, Blue: Output, Black: Ground)
  • Operating Voltage: 12-24V DC
  • Response Frequency: 600Hz
  • Operating Voltage Range: 10–30 V DC
  • Current Consumption: ≤15 mA at 24 V DC (no load)
  • Switching Frequency: Up to 600 Hz
  • Maximum Switching Current: 100 mA
  • Voltage Drop: ≤2.5 V at 100 mA load
  • Response Time: ≤0.8 ms
  • Protection: Reverse polarity and surge protection
  • Housing Material: Heat-resistant ABS resin
  • Enclosure Rating: IP67 (dust and water resistance)
  • Operating Temperature: -25°C to 70°C
  • Applications: Used in automation systems for precise object detection

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.

Weight 0.057 kg
