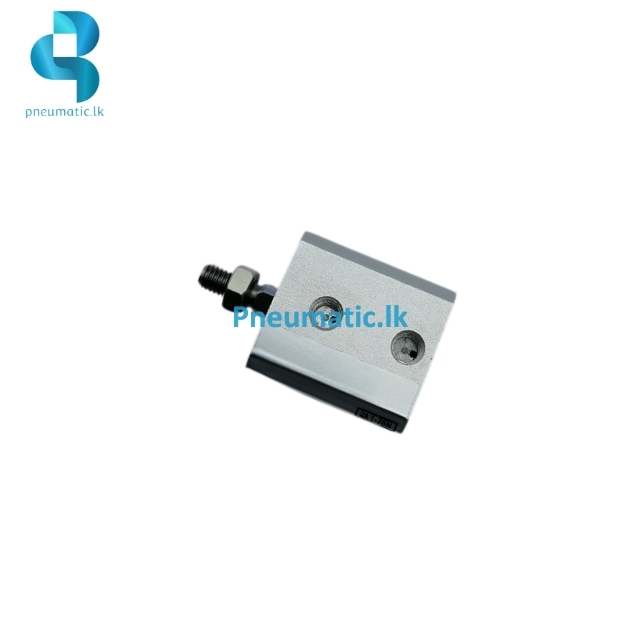

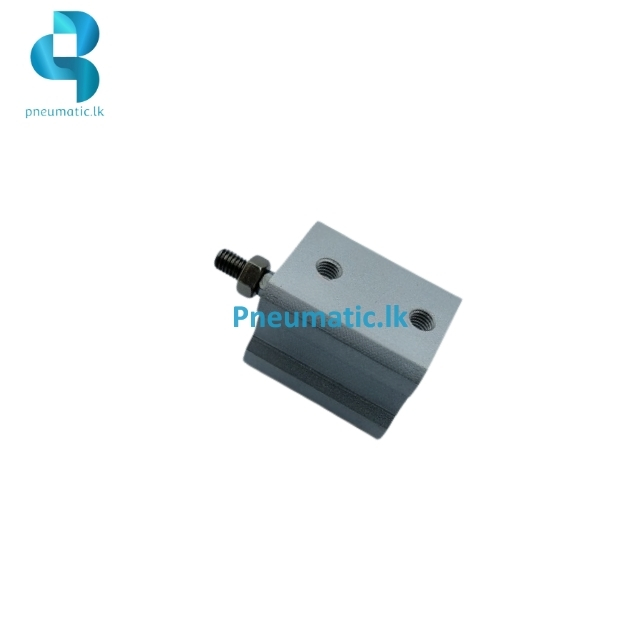

CQ2B12-25D | Air Cylinder Specifications Model: CQ2B12-25D Type: Compact, Double-Acting Pneumatic Cylinder Bore Size: 12 mm Stroke Length: 25 mm Operation Type: Double-acting Port Size: Compatible with standard fittings (specific size may vary) Operating Pressure Range: 0.1 MPa to 1.0 MPa (Approx.) Operating Medium: Filtered compressed air Temperature Range: -10°C to +60°C (Non-freezing) Piston Material: […]

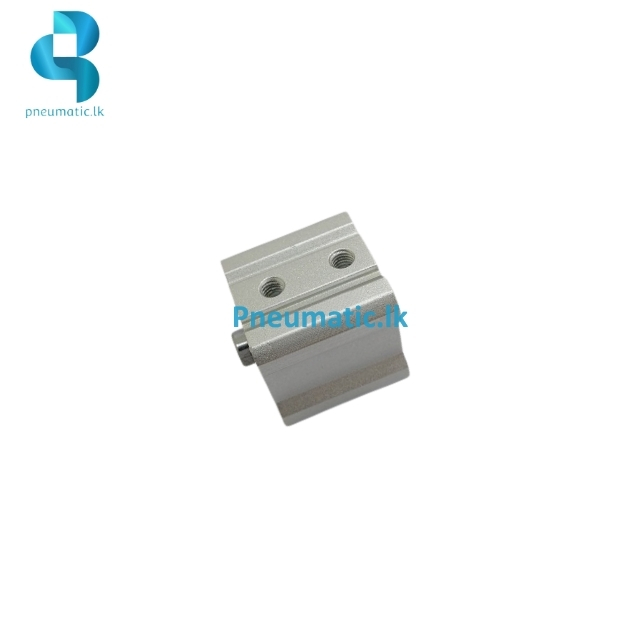

CQ2B16-20D | Air Cylinder Key Specifications: Bore Size: 16mm Stroke: 20mm Operating Pressure: 0.07-1.0 MPa (10-145 psi) Mounting Type: Through-hole Cylinder Action: Double-acting Body Material: Aluminum Rod End: Female thread Built-in Magnet: No Auto Switch Mounting Groove: Available on 2 surfaces for bore sizes 12-25mm Features: Compact Design: Space-saving with a shorter body compared to […]

CQ2B16-5D | Air Cylinder Key Specifications: Bore Size: 16mm Stroke: 5mm Operating Pressure: 0.07-1.0 MPa (10-145 psi) Mounting Type: Through-hole Cylinder Action: Double-acting Body Material: Aluminum Rod End: Female thread Built-in Magnet: No Auto Switch Mounting Groove: Available on 2 surfaces for bore sizes 12-25mm Features: Compact Design: Space-saving with a shorter body compared to […]

CQ2B25-20DZ | Air Cylinder Key Specifications: Bore Size: 25mm Stroke: 20mm Operating Pressure: 0.3-1.0 MPa (44-145 psi) Mounting Type: Through-hole Cylinder Action: Double-acting Body Material: Aluminum Rod End: Female thread Built-in Magnet: Yes Auto Switch Mounting Groove: Available on 2 sides for bore sizes 12-25mm, 4 sides for bore sizes 32-100mm Features: Compact Design: Space-saving […]
