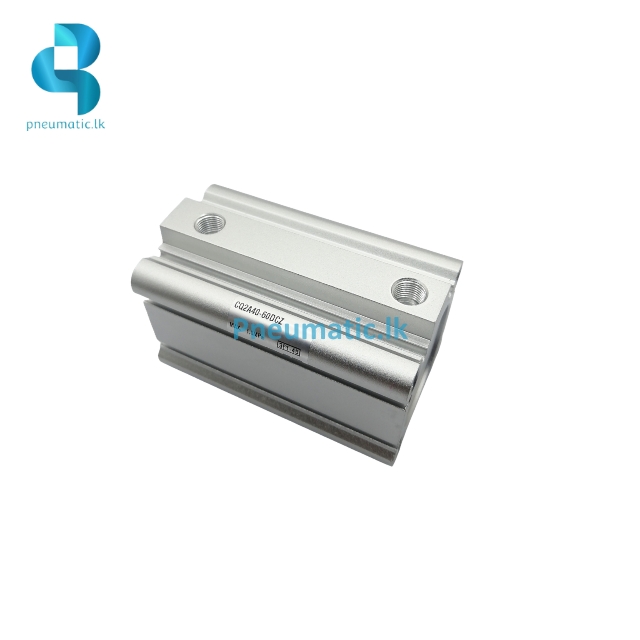

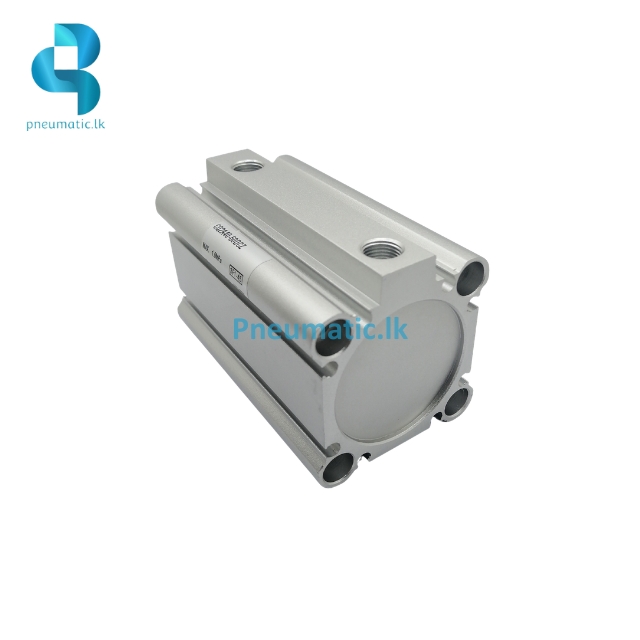

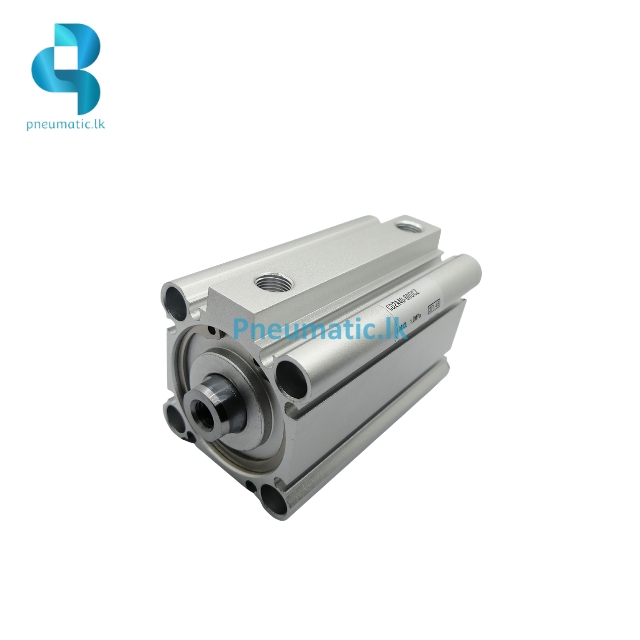

CQ2A40-60DCZ | Compatible Double Acting Air Cylinder-Replacement for SMC CQ2 Series

CQ2A40-60DCZ | Compatible Double Acting Air Cylinder-Replacement for SMC CQ2 Series

• Bore size: 40 mm
• Stroke length: 60 mm
• Rod end: Female thread
• Mounting type: Threaded mounting
• Action: Compact, double-acting, single rod
• Port size: 1/8″
• Operating pressure: 0.05–1.0 MPa
• Operating temperature: -10 °C to +70 °C
• Piston speed: 50–500 mm/s
• Cushion: Rubber bumper
• Auto switch compatibility: Mounting grooves on 4 surfaces for magnetic switches
• Application: CQ2A40-60DCZ Double Acting Air Cylinder is used for precise linear movement in automated machinery.

If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
